This dial indicator is in used condition with visible cosmetic wear (“rough” appearance) on the bezel and body, consistent with a life in a working machine shop. However, it has been tested and is functioning nicely. The spindle action is smooth, the return spring is strong, and the mechanism repeats correctly. It is sold as the Gauge Only (no box or accessories included).
Product Overview
The Mitutoyo 2959S is a specialised “One Revolution” dial indicator designed for error-free reading. Unlike standard indicators that can spin multiple times (leading to counting errors), this model’s measuring range is limited to 1.6mm.
This “One Rev” design effectively eliminates reading mistakes by ensuring the needle never passes the zero point more than once during a measurement. It features a high-sensitivity 0.01mm graduation and a unique shock-proof mechanism to protect the internal gears from sudden impacts. The dial face is balanced (0-100, but effectively sets up as 50-0-50) to clearly show positive and negative deviation from a set zero point.
Brand Information
Mitutoyo Corporation (est. 1934) is the global standard for precision measurement. The 2959S is a favourite in quality control departments because it removes the “human error” factor of miscounting spindle revolutions, making it perfect for Go/No-Go inspection fixtures.
Specifications
Feature
Specification
Model
2959S (Series 2)
Type
One Revolution / Error Free
Range
1.6mm (effective range)
Graduation
0.01mm
Dial Reading
0-100 (Balanced)
Accuracy
±0.013mm
Stem Diameter
8mm (ISO Standard)
Back Type
Lug Back
Included
Indicator Only (No Box)
Keywords
Mitutoyo, 2959S, one revolution indicator, error free indicator, dial indicator, 0.01mm dial gauge, machinist tools, inspection gauge, series 2 indicator.
The tracking wheel is a critical component in the Radius Master belt grinding system. Positioned at the top of the machine’s belt head, it works in conjunction with the tensioning and tracking adjustment mechanism to keep the 50 x 1220mm abrasive belt running true — centred, stable, and at consistent tension across all seven grinding stations.
Over time and with heavy use, tracking wheels can develop flat spots, surface glazing, or bearing wear that causes belt drift, uneven tracking, or vibration. Replacing a worn tracking wheel restores the machine’s characteristic precision belt control — the same control that allows the Radius Master to reliably track stiff, heavy-duty polyester-backed ceramic belts that cause tracking problems on lesser machines.
This replacement wheel measures 89mm in diameter x 50mm wide, matching the factory specification of the Series 2 belt head. Being a genuine NIROC/Radius Master part, it fits without modification and maintains the engineering tolerances the machine was designed around.
Signs your tracking wheel may need replacement:
Belt drifts to one side despite tracking adjustments
Vibration or wobble at the top of the belt head
Belt wear pattern skewed to one edge of the belt
Visible flat spots, cracking, or glazing on the wheel surface
Bearing roughness or play when spinning the wheel by hand
Company Information
This is a genuine spare part manufactured by NIROC, the Australian company that acquired Radius Master Machinery in 2025 and continues to build and support the full Radius Master range. Using genuine NIROC parts ensures correct fit, correct durometer rubber, and correct bearing specification — maintaining the performance and safety standards the machine was designed to deliver. NIROC supplies spare parts directly through their website (niroc.com.au) and through authorised Radius Master dealers in Australia
Features & Specifications
Feature
Specification
Make
Radius Master
Product Name
Tracking Wheel 89 x 50mm
Part Type
Genuine OEM spare part
Dimensions
89mm diameter × 50mm wide
Compatible Machines
Radius Master RM-48 Series 2, RM48AE-VS Series 2
Function
Upper belt tracking roller
Belt Compatibility
50 x 1220mm (2″ x 48″)
Country of Origin
Australia
Further Information
Genuine Parts vs. Aftermarket
The Radius Master’s ability to track heavy ceramic-backed belts reliably depends on the rubber compound, wheel diameter, and bearing quality of the tracking wheel being within specification. Aftermarket or improvised replacements may use incorrect rubber hardness (durometer) that causes inconsistent belt tension — leading to belt wander, accelerated belt wear, or in worst cases, belt throw. Using genuine NIROC parts keeps your machine operating as designed.
Servicing Your Radius Master
If you are replacing the tracking wheel due to belt tracking problems, it’s also worth inspecting the tracking adjustment knob and tension spring for wear at the same time. NIROC supplies a full range of Radius Master spare parts — contact them directly or visit niroc.com.au for the complete spare parts catalogue.
This Mitutoyo Gauge Block Set is sold in used condition. Prospective buyers must note that the set is incomplete, with four specific blocks missing from the original count:
1.10mm
1.11mm
1.14mm
1.19mm
The remaining blocks show signs of use, which may include surface scuffs, staining.
Product details and use
This is a metric rectangular gauge block set manufactured by Mitutoyo, serving as physical standards for precision linear measurement. The set is designated as Grade 2, historically known as “Workshop Grade.”
Grade 2 blocks are generally intended for use in the workshop environment rather than a temperature-controlled laboratory. They are typically used for setting up machine tools, checking fixtures, positioning workpieces, and calibrating general-purpose measuring instruments like calipers or micrometers where extremely tight tolerances are not required. While incomplete and showing wear, the remaining blocks in this set can still serve as useful references for general shop applications.
Short brand description
Mitutoyo is a world-leading Japanese manufacturer of precision measuring equipment. For decades, they have been renowned for producing high-quality, reliable instruments standard in metrology laboratories and manufacturing facilities globally.
Features
Metric System: Standard metric rectangular blocks.
Grade 2 Accuracy: Suitable for general workshop precision applications and machine setup.
Steel Construction: Manufactured from hardened steel for durability and dimensional stability.
Wooden Storage Case: Includes the original fitted wooden box to organize the remaining blocks.

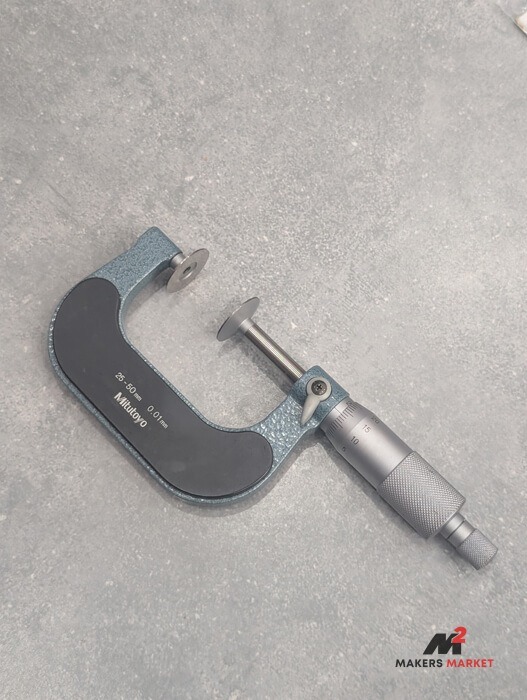

When you’re measuring the wall thickness of a thin-walled tube, checking the depth of a groove, or verifying the thickness of a disc or flange where a standard anvil micrometer simply can’t get purchase, you need a disc micrometer. The flat, large-diameter disc anvils span bridging features and unsupported surfaces that would rock or slip under a conventional spherical or flat anvil — giving you a repeatable, grounded reading where other mics give you guesswork. The Mitutoyo 169-201 is a 0–25 mm disc micrometer with 0.01 mm graduation, built to Mitutoyo’s JIS-grade toolroom standard, and this unit presents in like-new condition with no visible wear to the measuring faces or thimble graduations.
Large-diameter disc anvils (16 mm diameter, hardened and ground) — The disc geometry distributes clamping load across a broader contact area, critical when measuring thin sheet, non-ferrous strip, or brake disc thickness where a conventional anvil would tip or indent soft material and give a false low reading.
0.01 mm graduation on a clearly engraved thimble and sleeve — The 25-division thimble scale on the 169-201 gives direct readings to one-hundredth of a millimetre. For experienced hands, interpolation to 0.001 mm is practical in a temperature-stable environment, though the stated resolution is 0.01 mm.
Ratchet-stop thimble — The friction-controlled ratchet stop standardises measuring force regardless of operator, reducing the variable most responsible for inconsistent readings when multiple people are working from the same bench setup. This is the feature that separates a toolroom mic from a hardware-store instrument.
Mitutoyo 169-series disc micrometer platform — The 169-201 is the 0–25 mm range variant of Mitutoyo’s dedicated disc micrometer series. No adapters, no third-party disc retrofits — the disc anvil geometry is engineered into the frame from the ground up, keeping parallelism between anvil faces within Mitutoyo’s published tolerance.
Ideal for — Measuring wall thickness of thin-walled tube and pipe, checking brake rotor and clutch disc thickness, verifying sheet metal and gasket material thickness, inspecting disc spring and shim stock, measuring spur gear tooth thickness at the pitch line, and any application where a standard flat or spherical anvil cannot achieve stable contact.
Condition
Used (Like New / Minimal Use, No Visible Wear)
This Mitutoyo 169-201 presents exceptionally well. The disc anvil faces show no visible scoring, pitting, or flat spots — both faces appear clean and bright under inspection, with no corrosion or contact-induced wear marks. The thimble sleeve graduations are crisp and fully legible with no rubbing or paint fill loss. The knurled thimble and lock nut operate smoothly, with no stiction or roughness in the spindle travel across the full 0–25 mm range. The ratchet stop engages cleanly and consistently. The frame retains its original finish with no significant dings, deep scratches, or corrosion — what’s present is nothing more than the expected light handling patina of a tool that has seen careful use. The measuring faces are parallel and the spindle advances and retracts without detectable slop. As with any used precision instrument, verification against a certified gauge block or setting standard before putting it into production use is recommended practice — zero the instrument with the disc faces together and confirm mid-range with a 12.5 mm gauge block or equivalent ground reference to satisfy yourself of accuracy before committing to critical work.
Included:
1 x Mitutoyo 169-201 Disc Micrometer, 0–25 mm, 0.01 mm graduation
1 x Wooden storage case with foam insert (as shown)
1 x Setting standard / gauge (as shown in case)
Not included: Calibration certificate. If traceable calibration is required for your QA system, budget for a third-party NATA calibration service after purchase.
Brand Information
Mitutoyo Corporation, founded in Japan in 1934, is the world’s largest manufacturer of precision measuring instruments and consistently sits at the top tier of global metrology alongside Mahr, Starrett, and Tesa. Their instruments are manufactured to JIS B 7502 and equivalent international standards, and Mitutoyo gauges are found on the inspection benches of aerospace, automotive, and precision engineering facilities worldwide — including throughout Australia’s manufacturing and defence supply chains. For a machinist or toolmaker, a Mitutoyo instrument is a known quantity: the specification on the data sheet is what you get in the field, backed by decades of documented performance and a comprehensive Australian service and calibration network.
Specifications
Feature
Specification
Brand
Mitutoyo
Model
169-201
Type
Disc Micrometer (Outside)
Series
169 — Disc Micrometer Series
Measuring Range
0–25 mm
Graduation / Resolution
0.01 mm
Accuracy
±0.003 mm (per Mitutoyo published specification for 169-series)
Disc Anvil Diameter
16 mm (hardened and ground)
Disc Anvil Thickness
1.5 mm
Thimble Type
Ratchet stop
Frame Material
Cast steel with heat-insulating side plates
Spindle / Anvil Material
Hardened alloy steel, carbide-tipped faces
Country of Origin
Japan
Condition
Used — Like New
Included Items
Micrometer, wooden storage case with foam insert, setting standard
Not Included
Calibration certificate
Note: Specifications sourced from Mitutoyo published data for the 169-series. Buyers should verify current Mitutoyo documentation for the 169-201 variant if calibration traceability or formal inspection records are required.
Condition: This pair of Kanon EMA-30 digital calipers is used and shows visible signs of use but remains in good working order. They are supplied in a Mitutoyo storage box.
The Kanon EMA-30 is a 300 mm capacity digital caliper designed for accurate internal, external, depth, and step measurements. With a resolution of 0.01 mm, these calipers provide clear and reliable digital readouts suitable for machining, inspection, and quality control tasks. Built with hardened stainless steel and precision-ground jaws, the EMA-30 ensures consistent measurement performance even in demanding shop environments.
Kanon, a Japanese manufacturer of precision measuring instruments, is well regarded for producing robust, accurate, and cost-effective metrology tools. Their digital calipers are trusted by machinists and toolmakers for repeatable measurements and straightforward operation.
Features & Technical Specifications
Parameter
Detail
Condition
Used, signs of wear, working nicely, supplied in Mitutoyo box
Model
EMA-30
Measuring Range
0 – 300 mm
Resolution
0.01 mm
Accuracy
±0.03 mm (typical for this model)
Display
Digital LCD readout
Measurement Types
External, internal, depth, and step
Construction
Hardened stainless steel, precision-ground jaws
Power Supply
Battery-operated
Storage
Supplied in Mitutoyo fitted case
Brand
Kanon (Japan)
Applications (SEO Keywords)
Reliable digital calipers for machinists and toolmakers
Accurate internal, external, depth, and step measurement up to 300 mm
Suitable for inspection and quality control in machining environments
Durable stainless steel design for workshop and metrology use
This is a GOST 5641-66 precision V-block and clamp pair, supplied in the original wooden storage box with all hardware. The blocks themselves look virtually unused — only very light superficial marks can be seen under close inspection. These marks are consistent with long-term storage rather than actual workshop use. Both blocks have been kept under a protective lubricant coating, which has preserved the ground faces and V-grooves extremely well. Although they present as new, they are listed as used due to age and prior ownership.
These USSR-era V-blocks were built for layout work, verifying cylindrical parts, machining setups, inspection tasks, and general toolroom use. Their mass, accuracy, and stable geometry make them reliable on the surface plate or on the mill table.
New micrometer head. Factory-fresh cosmetics; unused.
Product Use / Description
Ultra-small micrometer head for fine positioning and measurement in fixtures, jigs, XY stages, and custom gauges. Its compact form makes it easy to integrate into machines; the smooth 0.5 mm-pitch spindle gives predictable, repeatable adjustment. Measuring faces are hardened steel for durability.
Brand
Mitutoyo — Series 148 “Ultra-small” micrometer heads, model 148-205.
Features / Specs
Item
Detail
Model
148-205 (sometimes shown as 148-205-10 in EU listings)
Measuring range
0–6.5 mm
Graduation
0.01 mm
Max permissible error (J MPE)
±5 µm
Spindle pitch
0.5 mm/rev
Stem
Plain Ø6 mm (easy machine integration)
Spindle end
Spherical (SR3) — good contact on flats and slight misalignment
Measuring face
Hardened steel
Readout
Analog thimble & sleeve (non-digital)
Delivered
Paper box (standard for this series; may vary by region)
Typical uses
Fine adjustment/positioning on fixtures, stops, stages; comparator setups
Used, like new. Smooth, light thimble feel with crisp graduations. Rear lock holds firmly. Supplied on a rigid bolt-on mounting bracket. Minimal cosmetic marks only.
Product Use / Description
High-quality micrometer head for fixtures, jigs, XY stages, travel stops, and precision gauges. Reads in 5 µm (0.005 mm) divisions with a generous 13 mm of linear travel—great for fine positioning and comparative measurement on inspection rigs or small machines.
Brand
Unmarked (Japanese origin reported).
Features / Specs
Item
Detail
Type
Precision micrometer head with clamp bracket
Measuring range
0–13 mm travel
Graduation
0.005 mm (5 µm) per division
Controls
Rear spindle lock; low-backlash thimble
Contact
Flat button-style spindle tip (as pictured)
Mounting
Black anodised bracket with through holes for easy fixture mounting
Typical uses
Fine position/stop adjustment, comparator fixtures, probe setting, XY stage travel control
Included
Micrometer head with mounting bracket (no other accessories)
New old stock (NOS) — still factory sealed in its bag with the original inspection certificate. Packaging shows age; the micrometer head itself is spotless.
Product Use / Description
Compact micrometer head for fine positioning and measurement in fixtures, jigs, stops, and small stages. The short 0–2.5 mm travel with 0.001 mm divisions gives precise, repeatable adjustment. Carbide-tipped measuring face provides excellent wear resistance for long service life.
Brand
Mitutoyo (Japan) — early/vintage style, exact model not marked.
Features / Specs
Item
Detail
Type
Precision micrometer head
Measuring range
0–2.5 mm
Graduation
0.001 mm
Measuring face
Carbide-tipped for durability
Controls
Knurled thimble; clear sleeve scale; lock
Mounting
Cylindrical stem (standard micrometer-head style)
Applications
Fine position/stop adjustment, comparator fixtures, probe setting, small machine stages
Included
Sealed micrometer head, inspection certificate, original vintage packaging
The QCX2-09 motor starter is a powerful and reliable device designed to help you easily start and control your motor. With a current range of 7A to 10A, it’s capable of handling motors up to 1.5KW or 2HP with a 220v power supply. This starter is built to withstand tough working conditions, rated at IP54 and features a compact and user-friendly design for easy installation and operation. If you need a dependable and efficient way to start and control your motor, the QCX2-09 motor starter is the perfect solution for your needs.
Condition Used, but presents as new. No signs of use beyond the battery being installed. Supplied with inspection papers and instruction book. Smooth ratchet action and crisp LCD display.

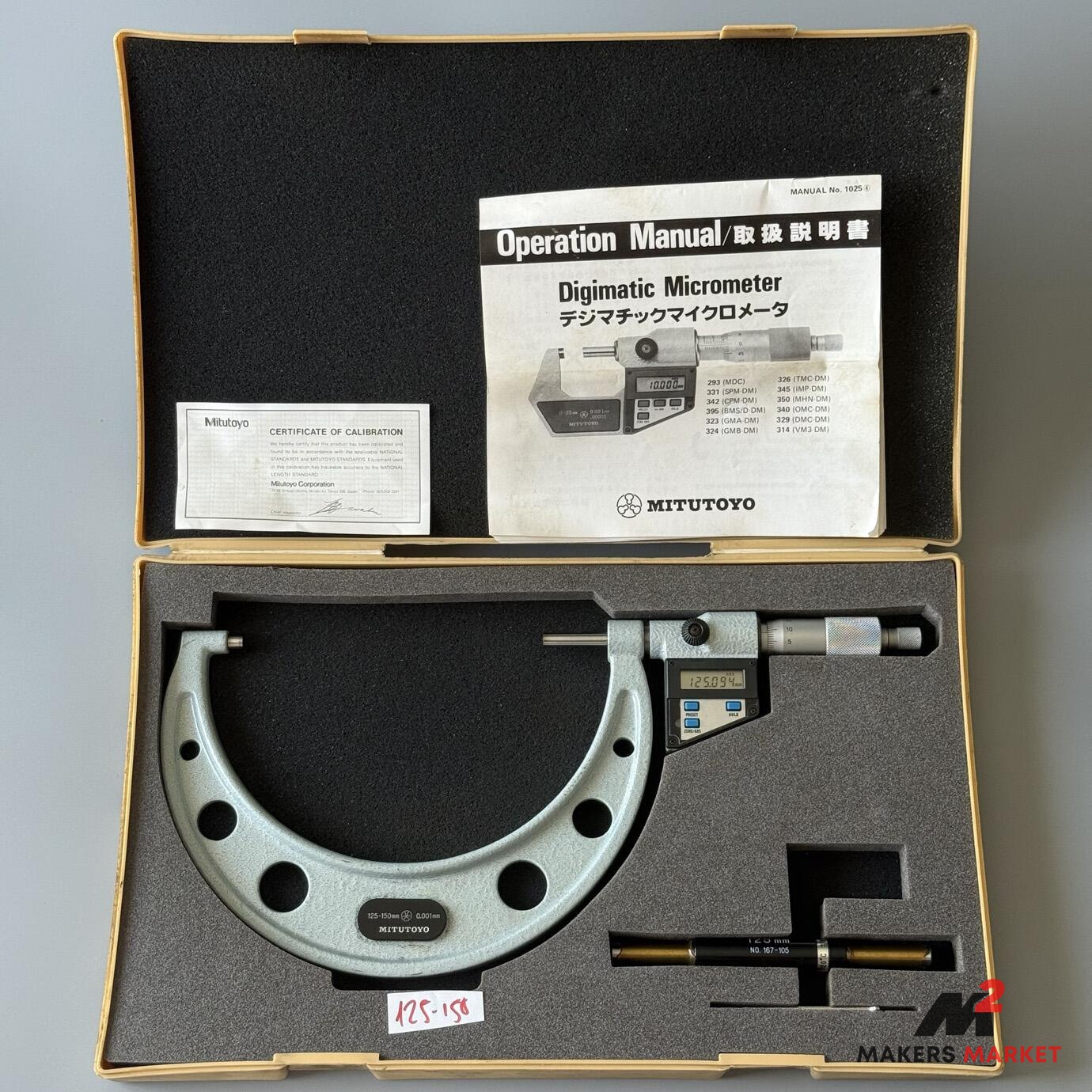

Product use / description Precision digital outside micrometer for measuring external dimensions in the 125–150 mm range. Ideal for toolroom inspection and production checks where fast, repeatable readings are required. The large LCD readout and ratchet-mechanism help reduce reading errors and ensure consistent measuring force. Carbide-tipped, lapped measuring faces deliver stable, long-life accuracy.
Condition: Brand new, sealed in its original case. The micrometer and accessories are unused and supplied exactly as from the factory.

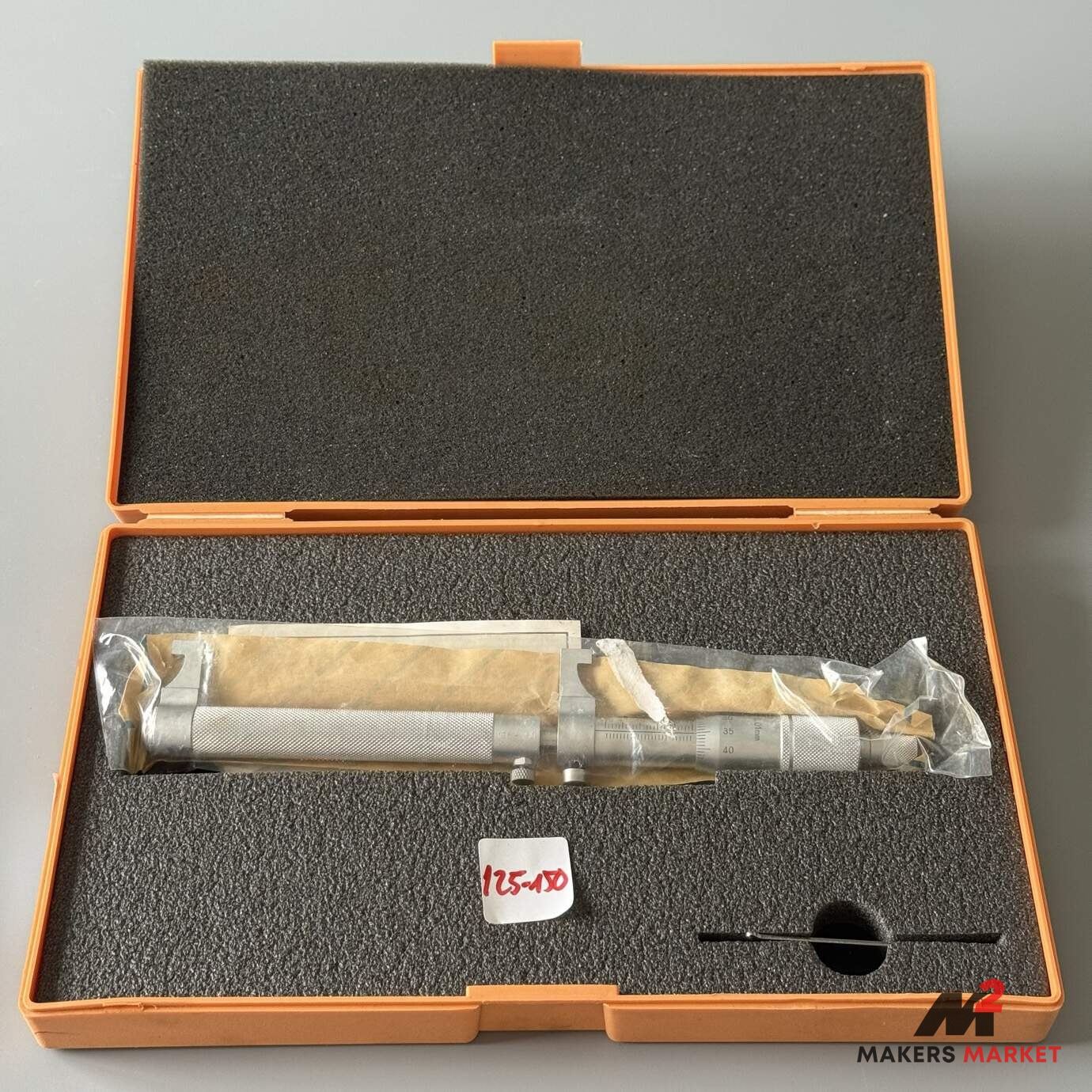

The Mitutoyo 145-190 is a mechanical inside micrometer designed for precision measurement of internal diameters between 125 mm and 150 mm. With 0.01 mm graduations and finely ground carbide measuring faces, it delivers stable, repeatable results in demanding machining and inspection environments. The satin chrome-finished sleeve and thimble provide excellent readability while resisting glare and wear.
Mitutoyo is a world leader in precision measurement, and their Series 145 inside micrometers are known for accuracy, robust construction, and smooth spindle operation. This tool is ideal for machinists and inspection professionals requiring dependable internal diameter verification.
