NAKANE Live Center MT4

Description

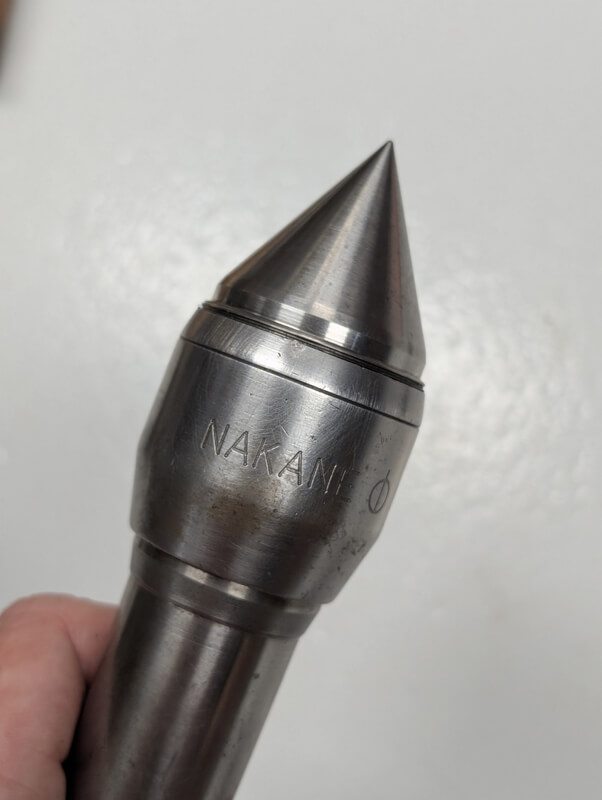

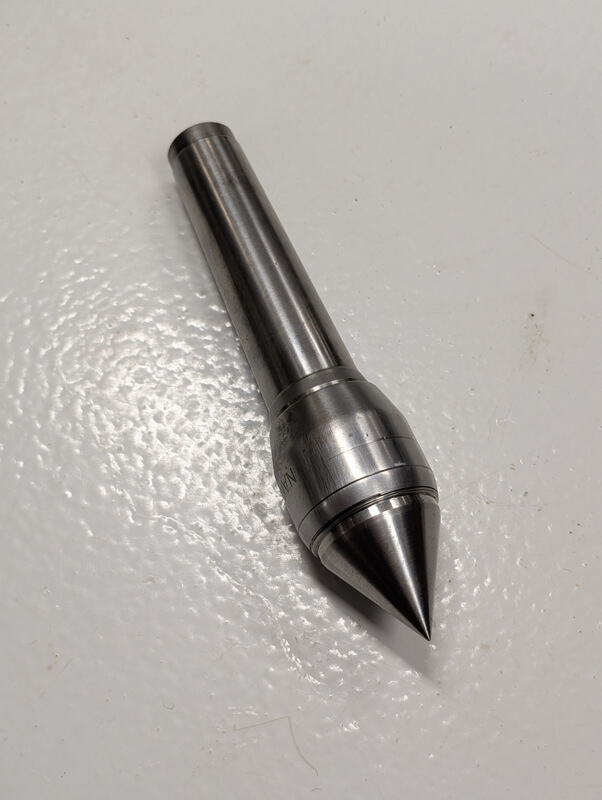

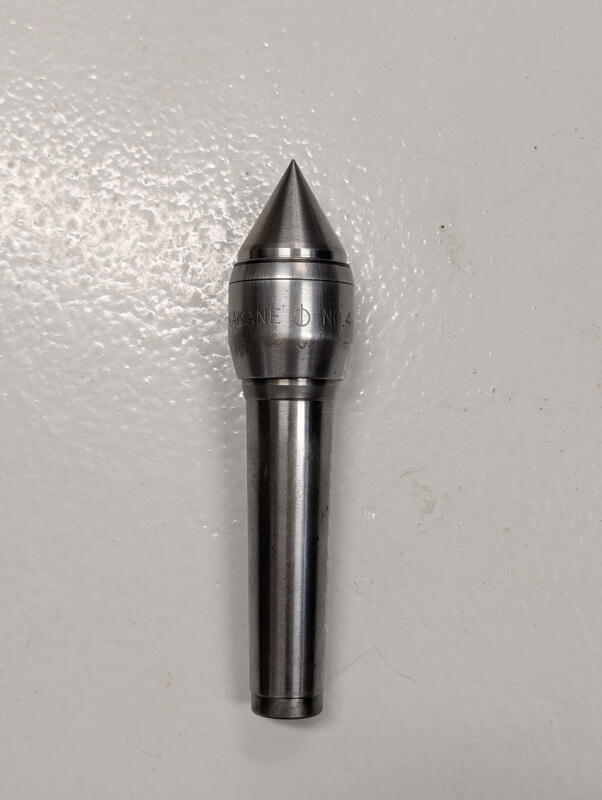

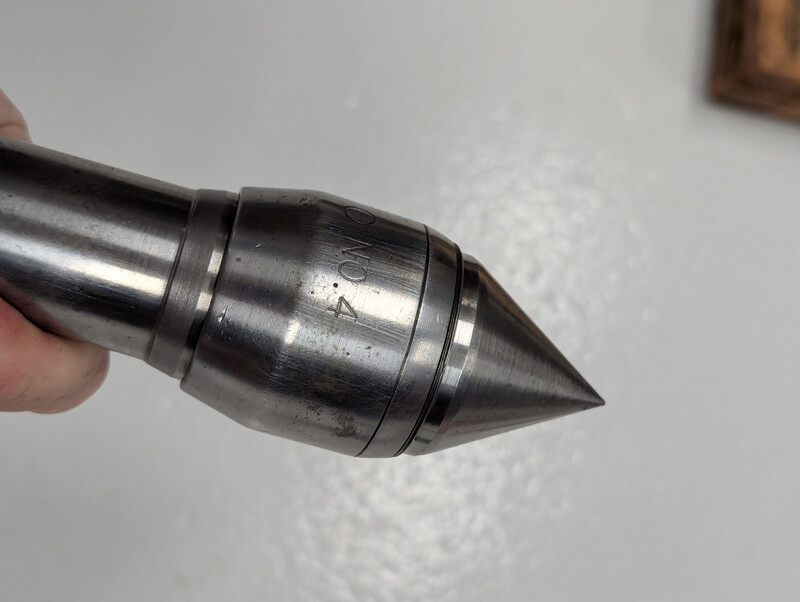

NAKANE Live Center MT4 (LS Type)
The NAKANE Live Center MT4, part of the LS Type series, is a rotating center designed to support long workpieces on lathes and other machining equipment. It features a Morse Taper No. 4 (MT4) shank for secure mounting on NC lathes, conventional lathes, copying lathes, hobbing machines, grinders, and similar setups. The center has a 60-degree point angle with a 35 mm point diameter and a 48 mm body diameter, built for stability during high-speed rotation.

This live center supports a maximum workpiece weight of 500 kg and can operate at speeds up to 3,000 RPM. The total length is 192 mm, with a 35 mm point length and a 48 mm body length. It uses a combination of thrust and radial bearings to ensure smooth rotation, with an accuracy of 0.003 mm runout (TIR). The center weighs 2.2 kg and is constructed for durabimoreity in demanding workshop environments.

The LS Type design includes a replaceable carbide tip (LSA Type) as an option, though this model is the standard version. It’s engineered to handle various rotating bodies, providing reliable support for precision machining tasks. Manufactured by NAKANE (Sanyo Seisakusho), this live center is a practical choice for machinists needing consistent performance.

Features:

• ID: 87959
• Morse Taper: MT4
• Point angle: 60 degrees
• Point diameter: 35 mm
• Body diameter: 48 mm
• Total length: 192 mm
• Point length: 35 mm
• Body length: 48 mm
• Maximum workpiece weight: 500 kg
• Maximum RPM: 3,000
• Runout accuracy: 0.003 mm (TIR)
• Weight: 2.2 kg
• Bearing type: Combination of thrust and radial bearings
