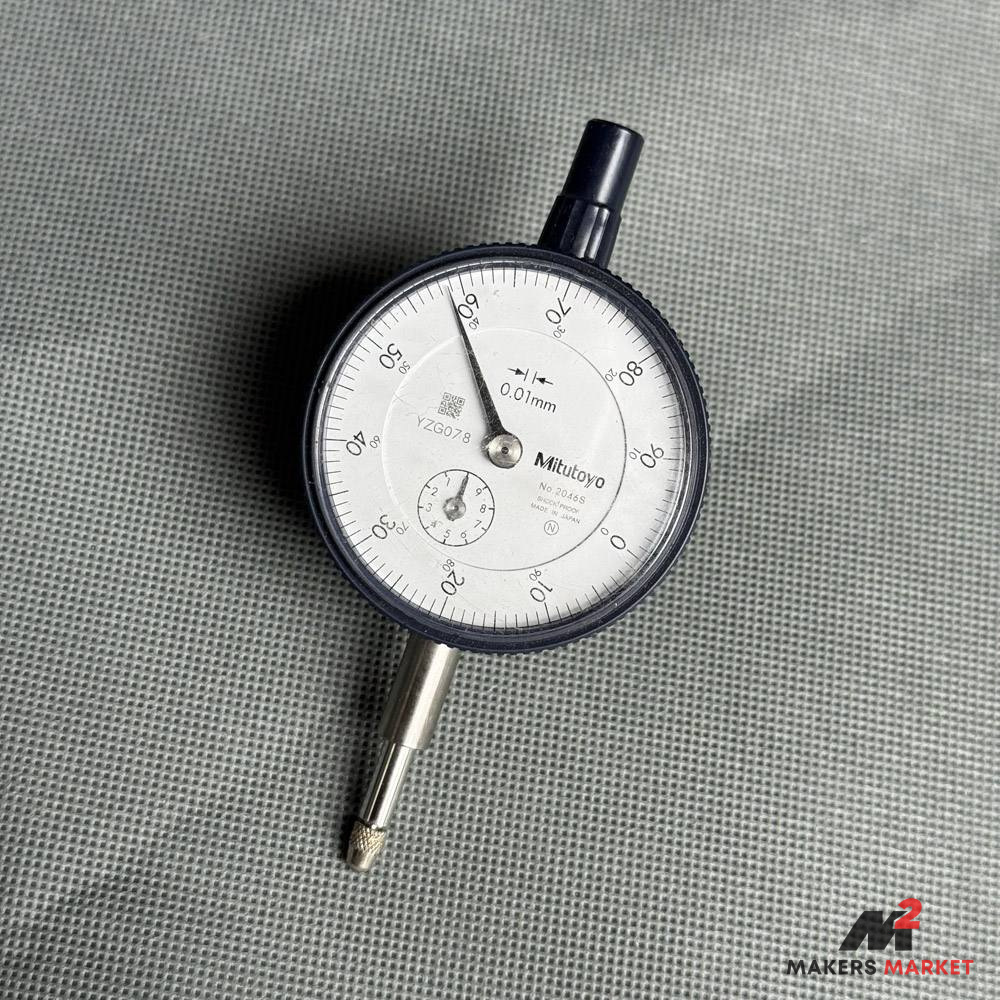

Mitutoyo Dial Gauge 2046S

Mitutoyo 2046S Dial Gauge — 0–10mm, 0.01mm Graduation

The Mitutoyo 2046S is a workshop staple for a reason. This 0–10mm travel dial gauge with 0.01mm graduation delivers the kind of repeatable, reliable readout that machinists and toolmakers have trusted for decades — on the surface grinder, on the mill, or bolted to a mag base checking runout on the lathe. Made in Japan, built to Mitutoyo’s exacting tolerances, and designed for the daily grind of a production or toolroom environment, the 2046S punches well above its weight class. This one is ready to go straight onto a mag base and get to work.

0–10mm measuring range with 0.01mm (one-hundredth) graduation — Full millimetre travel makes this gauge genuinely versatile. You’re not limited to fine surface checking; 10mm of range means it’s equally at home tramming a mill head, checking parallelism on a surface grinder table, or setting up a four-jaw chuck where you need a bit of travel before you start dialling in.
Balanced continuous dial face with revolution counter sub-dial — The large, clearly graduated main dial reads 0–100 divisions across the full face, while the small sub-dial tracks full millimetre revolutions. In practice, this means you’re not losing count of how many times the needle has lapped — critical when you’re doing a runout check and need to know total indicator reading (TIR) at a glance.
Shock-proof (dust-proof) construction — Mitutoyo No. 2046S — The ‘S’ designation on this series denotes shock-proof internals, meaning the gear train and jewelled movement are protected against the kind of accidental knocks that happen in a working shop. A non-shock-proof gauge dropped from mag-base height can end its working life on the spot. This one is built to survive.
8mm stem / lug mount — universal compatibility — The 8mm cylindrical stem is the industry standard for dial indicator holders and magnetic base clamps. It’ll seat in virtually any mag base, Noga-style arm, surface gauge, or dedicated indicator holder without adapters. The seller notes the round mounting pin (lug) is screwed in and compatible with eyelet-style magnetic arms — worth confirming your arm’s clamp style before you order if you’re running a non-standard setup.
Ideal for — tramming mill heads and vices, four-jaw chuck runout setup, lathe between-centres alignment, surface grinder table flatness checks, press-tool alignment, and any application where you need reliable 0.01mm resolution over a generous travel range.

Condition

Used (Fair Condition / Functional Working Tool — Cosmetic Wear)

Mechanically, this gauge is doing what it needs to do. The needle moves smoothly across the full 0–10mm travel, returns to zero consistently, and tracks with the repeatable response you’d expect from a Mitutoyo movement — no sticky zones, no backlash drag, no dead spots. The sub-dial revolution counter functions correctly. The spindle and contact point move freely without side-play.

Cosmetically, the dial face shows the honest wear of a tool that’s been used — visible marks and light scratches on the crystal and face. This is surface-level; it doesn’t affect readability at normal working distance, and it has zero bearing on measurement accuracy or repeatability. The case and bezel carry the expected patina of a shop-used instrument — not pretty, but structurally sound. There are no cracked or missing components, and the bezel rotates correctly for zeroing.

For a tool at this price point, we’d recommend a quick verification check before putting it into critical inspection work — zero it against a known reference and run the plunger through its full travel a few times to confirm consistent return. For tramming, runout checks, setup work, and general toolroom duties, this gauge will perform exactly as intended. If you’re pulling it into a formal inspection role, a calibration check against a certified master is always good practice with any used indicator, regardless of brand.

Included

1 x Mitutoyo 2046S Dial Gauge (0–10mm, 0.01mm graduation, 8mm stem)
1 x Lug/round mounting pin (screwed in, compatible with eyelet-style magnetic arms)

Not Included

Carry case or storage box
Calibration certificate
Alternate contact points

Brand Information

Mitutoyo Corporation, founded in Japan in 1934, is broadly regarded as the global benchmark in hand-held precision metrology. Their instruments are manufactured to JIS and ISO standards in facilities that supply calibration-grade tooling to aerospace, automotive, and defence industries worldwide. In the Australian trade, Mitutoyo sits firmly in the top tier alongside Mahr and Tesa — a clear step above general-purpose import brands and, for most machinists, the reference point against which other indicators are compared. Made in Japan is not marketing copy here; it’s a meaningful quality indicator that reflects material selection, manufacturing process control, and long-term reliability in the field.

Specifications

Feature	Specification
Brand	Mitutoyo
Model	2046S
Type	Dial Indicator / Dial Gauge (plunger type)
Series	2000 Series — Shock-proof Dial Indicator
Measuring Range	0–10mm
Graduation / Resolution	0.01mm (1 hundredth of a millimetre)
Dial Reading	0–100 divisions (balanced, continuous)
Revolution Counter	Yes — sub-dial tracks full mm revolutions (0–10)
Accuracy	±0.01mm (per Mitutoyo 2046S specification — verify against current Mitutoyo datasheet)
Construction	Shock-proof (dust-proof) movement
Stem / Shank Diameter	8mm (industry standard)
Mount	8mm cylindrical stem + lug/eyelet mount pin (included)
Country of Origin	Japan
Condition	Used — Fair Condition (functional, cosmetic wear to face and crystal)
Included Items	Gauge with lug mounting pin fitted
Not Included	Case, calibration certificate, alternate contact points

Keywords

Mitutoyo 2046S, Mitutoyo dial gauge, dial indicator 10mm, Mitutoyo dial indicator, 0.01mm dial gauge, plunger dial indicator metric, dial gauge Australia, tramming indicator, lathe runout gauge, toolroom dial indicator, machinist dial gauge, mag base indicator

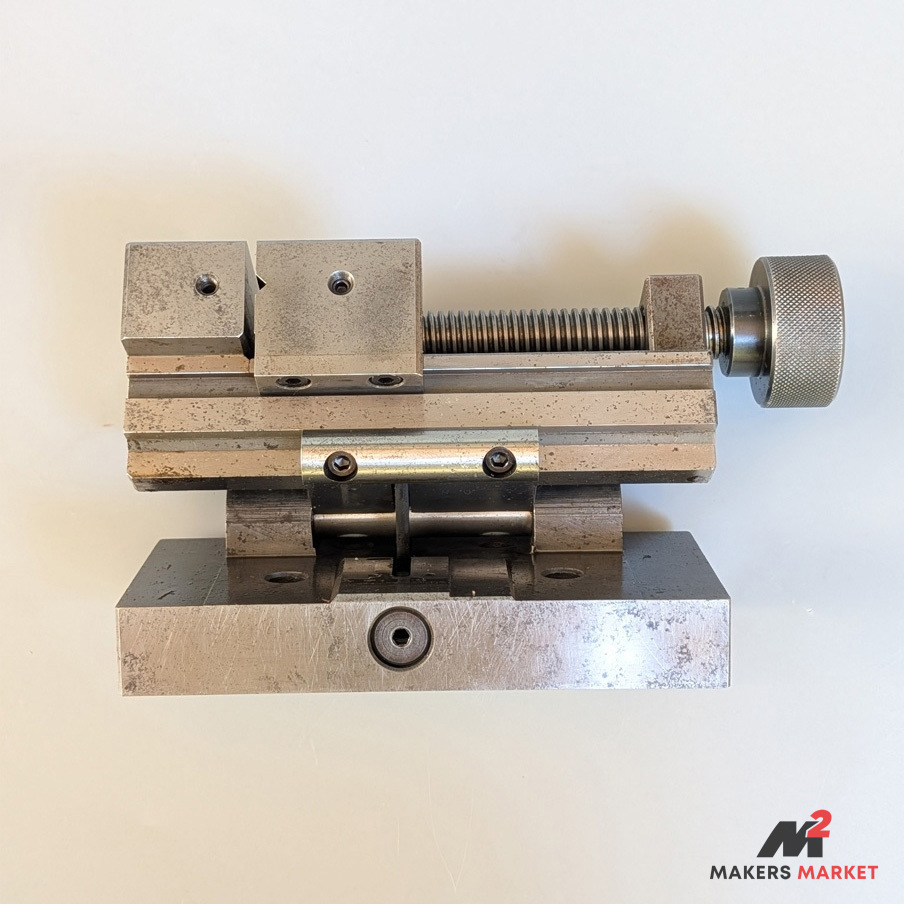

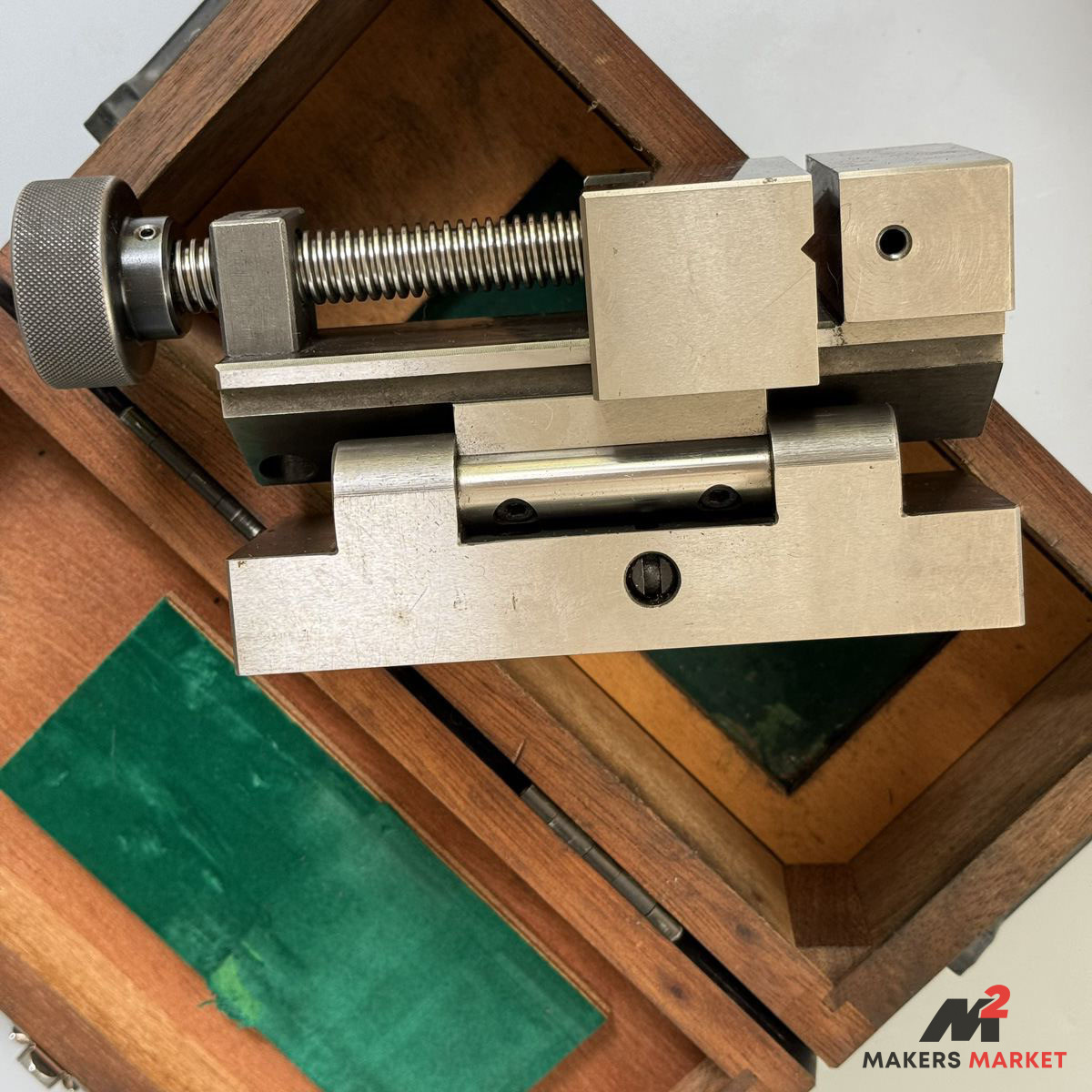

JAM 80×75 Sine Vice DL50

Product Overview

When you need to mill, drill, or surface grind a complex angle into a workpiece, you need workholding that is as rigid as it is precise. The JAM (Japan Automatic Machine) 75×80 Precision Sine Vise is a heavy-duty, toolmaker-grade instrument engineered to hold your parts securely at exact angles without the flex or chatter associated with cheaper tilting vises.

Precision Sine Adjustment: Setting your angle is simple and secure. The sine adjustment pivots smoothly and locks down solidly using a standard Allen key, allowing you to establish exact angles for critical machining or grinding operations.
Horizontal V-Groove Jaw: Trying to hold round stock in flat jaws is a recipe for disaster. The moving jaw on this vise features a precision-cut horizontal V-groove, giving you a rock-solid, three-point grip on pins, shafts, and cylindrical workpieces.
Thick, Sturdy Base: A sine vise is only as good as its foundation. This unit features a remarkably thick, heavily cast mounting base, providing maximum vibration dampening and a rigid footprint for bolting down to your milling table or magnetic chuck.
Silky Smooth Screw Action: The main lead screw on this vise is a testament to Japanese engineering. It operates with a flawless, almost gliding action, allowing you to clamp down on delicate parts with incredible tactile feedback.

Condition

Used (Good Condition / Shows Patina).

This precision vise has seen use but presents in immaculate condition.

Surface Condition: Perfect, with a small machined mark on the outer edge of the fixed jaw, not affecting use.
The Mechanics: The jaws themselves are in great shape without heavy crash damage. The jaw lead screw operates flawlessly. The pivot adjustment is smooth and easy to operate.

Brand Information

JAM (Japan Automatic Machine Co., Ltd.) is a highly respected Japanese manufacturer known globally for their automated machinery, precision presses, and top-tier workholding solutions. Their precision vises are heavily favored by tool and die makers for their robust construction, exceptional squareness, and long-term durability.

Specifications

Feature	Specification
Brand	JAM (Japan Automatic Machine)
Type	Precision Sine Vise
Size / Capacity	75×80 (Approx. 75mm Jaw Width / 80mm Opening)
Angle Adjustment	Allen Key Lock
Moving Jaw Feature	Horizontal V-Groove (For round stock)
Base	Heavy-Duty Flanged Base
Condition	Used, Great Condition

Keywords

JAM sine vise, Japan Automatic Machine vise, toolmakers sine vise, 75mm sine vise, precision grinding vise, angled milling vise, machinist vise, Japanese workholding, V-groove vise.

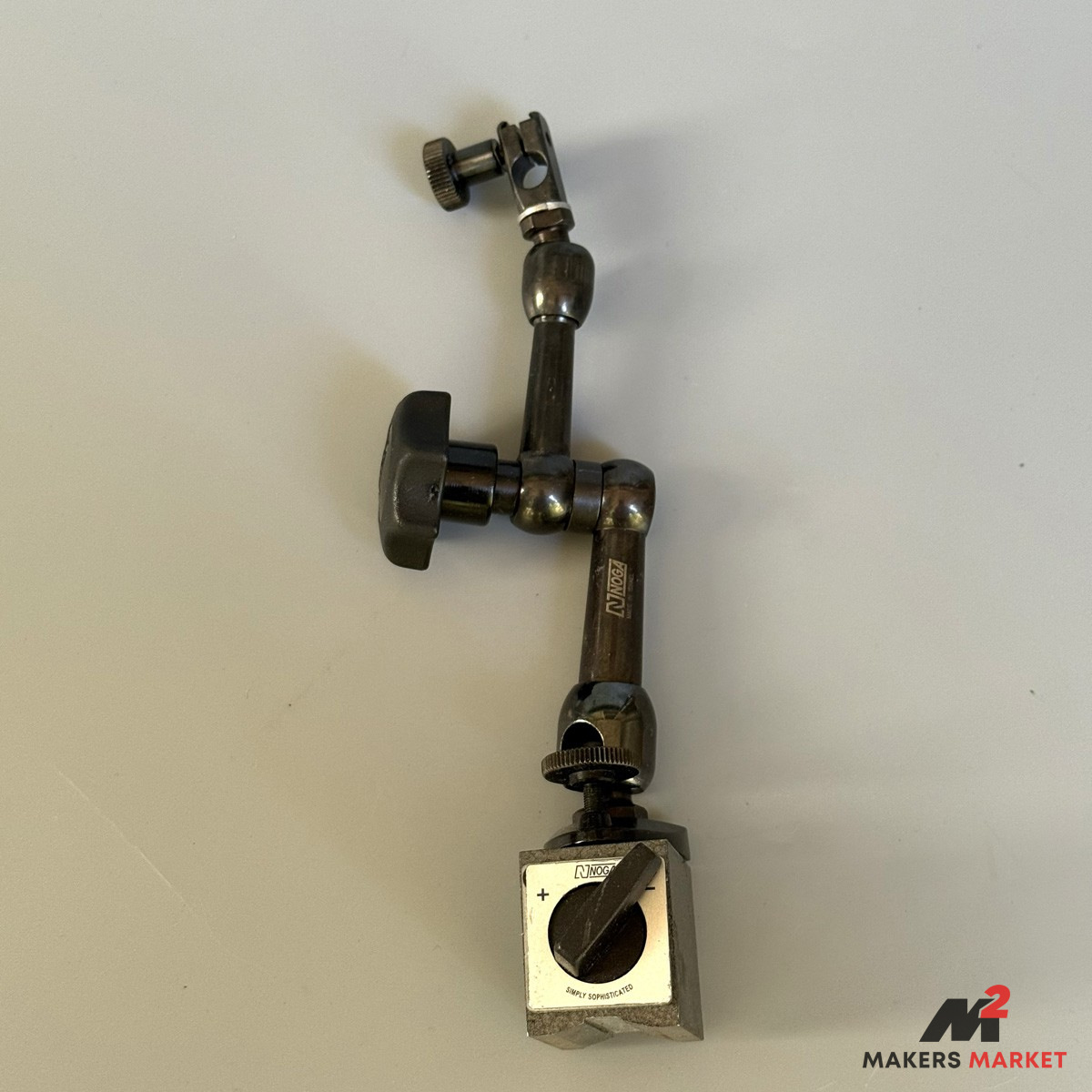

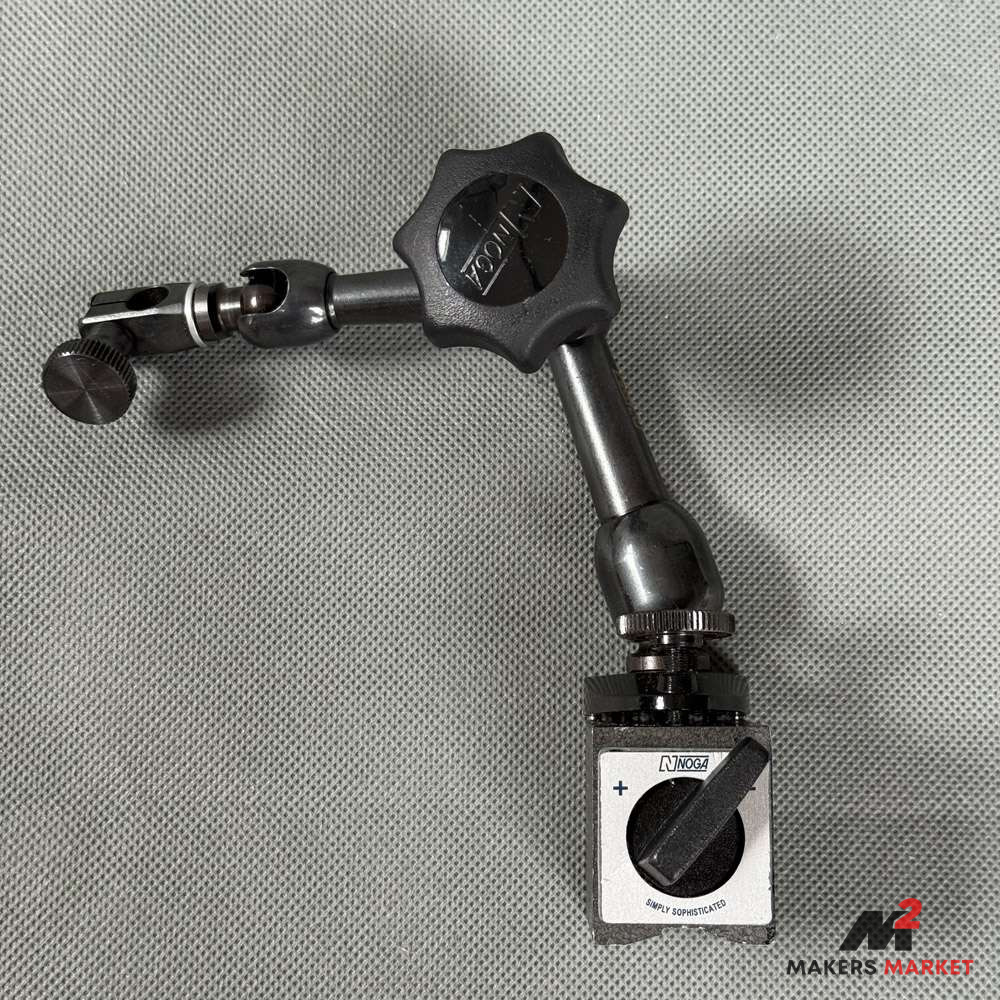

Noga NF10403 Mag Fine Adjust Base

Product Overview

This is a premium Noga Articulating Mini Magnetic Base (matching the NF-series profile), specifically featuring the highly desirable Fine Adjustment at the Base. It is the ultimate setup companion for precise dial test indicator (DTI) alignment in tight machining envelopes.

Base-Mounted Fine Adjust: Unlike models with the adjustment knob up at the indicator head, having the fine-tuning mechanism down at the magnetic base is a game-changer. It means your hand is resting solidly near the machine table while you turn the screw, preventing you from accidentally bumping or vibrating the delicate indicator setup while trying to sweep it to zero.
Single-Point Articulation: Noga is famous for its central locking mechanism. By turning one single knob, the bottom, middle, and top joints all lock up simultaneously with absolute, rock-solid rigidity.
Universal Swivel Clamp: The top clamp is designed to securely grip both 6mm stems and standard dovetails. This means it will perfectly hold almost any lever-style dial test indicator in your shop.
Compact Footprint: As a smaller-profile base, it is perfect for clamping onto lathe chucks, small milling machine tables, or sliding headstock (Swiss) machines where a full-sized mag base simply gets in the way.

Condition

Used (Good Condition / Fully Functional).

This Noga base is in used condition and shows typical signs of shop wear.

Mechanical Integrity: The most important part of any used Noga is the locking cam. This unit has been checked, and the central locking knob tightens down securely, locking the arms rigidly without creeping or sagging. The magnet switches on and off cleanly with strong holding force. (Note: While the exact model number sticker may be worn or point to a similar NF series, the physical configuration is guaranteed as a base-adjust model).

Brand Information

Noga Engineering (Israel) is universally recognized by machinists as the absolute gold standard for magnetic bases and indicator holders. While their single-knob articulating design has been heavily cloned by budget brands, the holding power, buttery-smooth joints, and durability of a genuine Noga have never been matched.

Specifications

Feature	Specification
Brand	Noga (Israel)
Model Type	NF-Style Mini Base
Type	Articulating Magnetic Base
Fine Adjust Location	At the Magnetic Base
Top Clamp Compatibility	6mm Stem & Dovetail
Locking Mechanism	Single-Knob Central Lock
Condition	Used / Tested & Rigid

Keywords

Noga mag base, Noga base fine adjust, NF mag base, mini magnetic base, dial indicator base, DTI holder, dovetail mag base, articulating magnetic base, machinist setup tool, Israeli metrology.

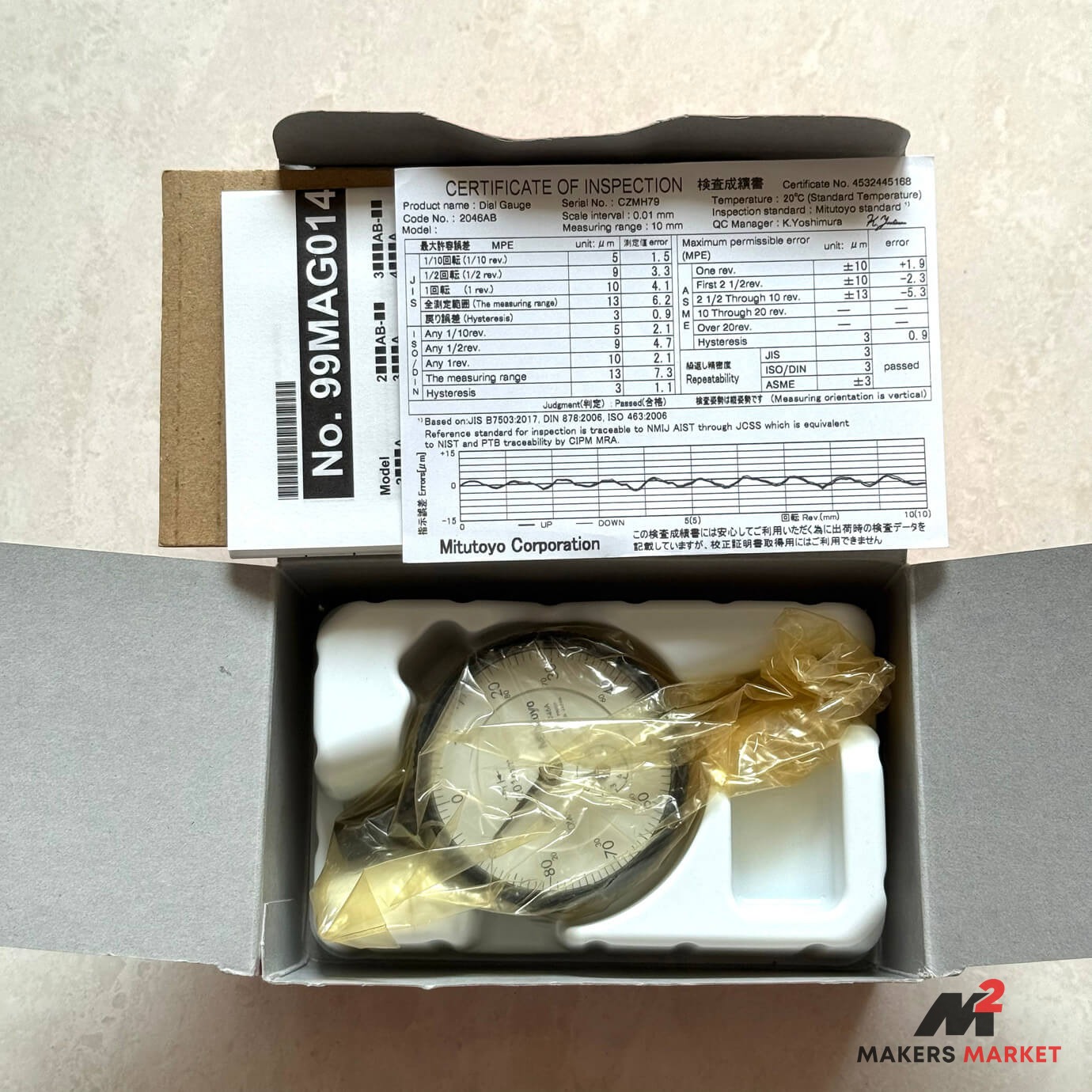

Mitutoyo Dial Gauge 2046AB

Condition: New

Mitutoyo’s 2046AB is part of their Series 2 standard plunger-type dial indicators, engineered for industrial precision work. Mitutoyo has a strong reputation among machinists, tool & die makers, and metrology labs for durable build quality, consistent accuracy, and clear readout, making their indicators a go-to when small deviations matter.

The 2046AB features a flat-back design (flat back surface) so that it can mount in tighter or constrained spaces, or attach more easily to fixtures where a standard lug-back isn’t ideal. The dial indicator offers fine graduations, hardened stem & shank, and design features to resist ingress of oil/dust around the bezel and dial, supporting reliable performance in machine-shop environments.

Technical Specifications

Parameter	Specification
Make & Model	Mitutoyo Series 2, Model 2046AB
Measuring Range (Plunger Travel)	0 – 10 mm
Resolution / Graduation	0.01 mm
Dial Reading (Scale on Face)	0-100 (one revolution = 1 mm)
Accuracy / Total Indicator Error	± 0.013 mm overall; for first 2.5 revolutions accuracy approx 0.01 mm per revolution
Stem / Shank Diameter	8 mm stem; 9.5 mm where ANSI/AGD variant
Contact Point Thread	M2.5 × 0.45 thread contact point for most metric versions; in some ANSI/AGD styles with 4-48 UNF
Back Type / Mounting Style	Flat back (Flat-Back) design
Dial Diameter / Case Size	57 mm housing / dial face diameter
Maximum Measuring Force	≤ 1.4 N
Protection Features	O-ring seal between bezel & crystal; no through-screw holes in frame to help resist ingress of oil / dust. us.misumi-ec.com+2judgetool.com+2
Optional Features	Bezel clamp and lifting lever attachable on either side without tools; probe lever (optional) can be connected to right or left.

Keywords

dial indicator, Mitutoyo 2046AB, Series 2, 0-10 mm dial gauge, 0.01 mm resolution, flat back dial indicator, precision measuring tool, machinist dial gauge, metrology indicator, ISO dial gauge, compact fixture gauge

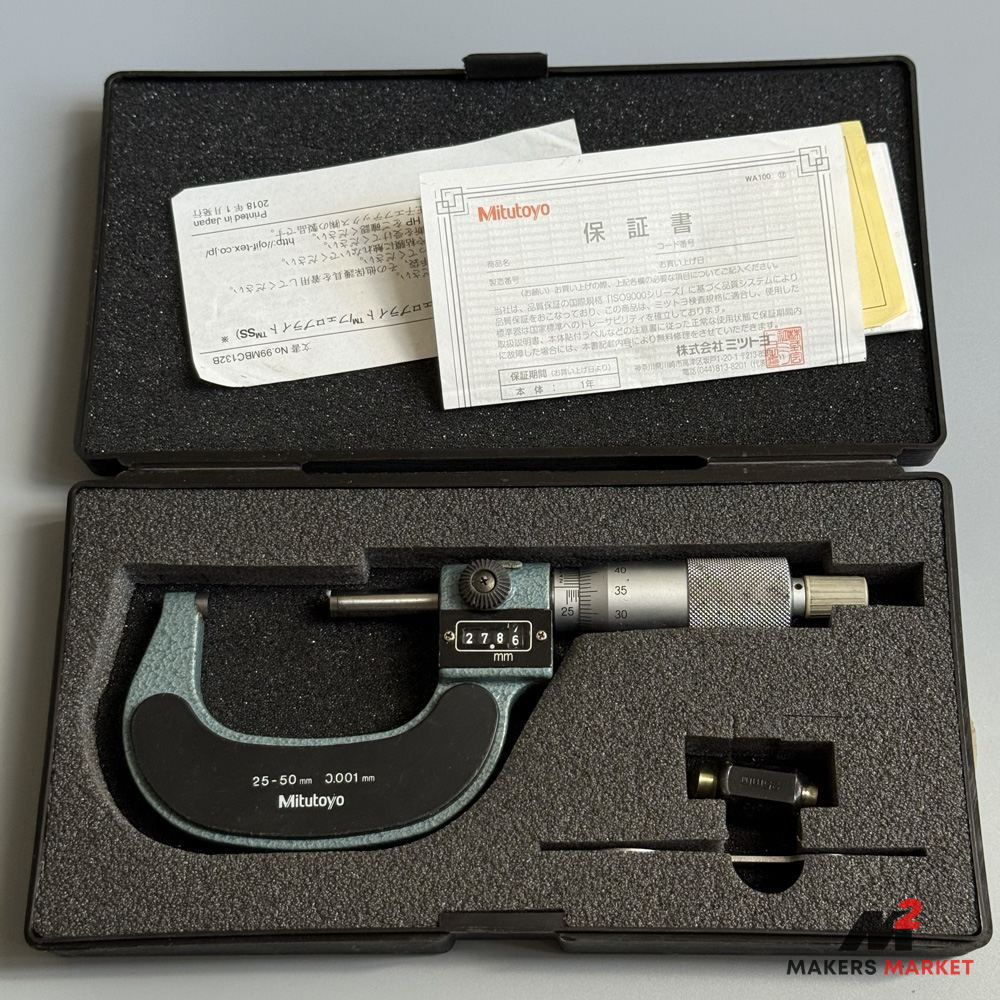

Mitutoyo 25-50mm Digit Micrometer 193-112

Product Overview

The Mitutoyo 193-112 is a 25–50mm outside micrometer with an integrated mechanical digit counter — a tool built for machinists who want fast, unambiguous readings without squinting at vernier lines. The rolling digit display eliminates interpolation error on the sleeve and suits the kind of high-repetition measuring work where thimble misreading costs time and scrapped parts. Japanese-built to Mitutoyo’s exacting toolroom standards, this is a bench instrument that earns its keep on a production floor or in a serious home shop.

Mechanical digit counter (0.001mm resolution) — The rolling counter reads directly in millimetres and hundredths, bypassing the need to read sleeve graduations and mentally add the thimble. In high-cycle measuring environments — incoming inspection, turned diameter checks, shaft fits — this pays back its premium in eliminated reading errors and faster throughput.
25–50mm measuring range — Covers the most common mid-range shaft, boss, and bearing-seat diameters encountered on the lathe or surface grinder. A 0–25mm mic handles small work; this one picks up where it leaves off and takes you through M30–M48 bolt bosses, bearing journals, and chuck jaw register fits.
0.001mm (1 micron) graduation — At one thou of a millimetre, this instrument resolves tolerances well inside most h6/H7 fits and is more than adequate for ISO general tolerance work, toolroom fits, and pre-grind stock allowance checks.
Carbide-tipped anvil and spindle faces — Mitutoyo fits the 193-series with hardened and lapped carbide measuring faces. Carbide resists the wear that kills flat-face accuracy on a plain steel mic, meaning the instrument holds its calibration longer under regular production use.
Ideal for — Checking turned shaft diameters to drawing tolerance, measuring bearing journal fits before pressing, verifying ground-stock OD before hardening, pre-measurement checks on CNC turned components, and incoming inspection of fastener and pin ODs in the 25–50mm range.

Condition

Used (Like New / Full Kit, Minimal Use)

This micrometer presents in excellent used condition with clear evidence of only light prior use. The carbide measuring faces are clean, flat, and free from visible pitting, scoring, or contact damage — the surfaces that determine accuracy are in sound shape. The frame finish retains the majority of its original lacquer with only minor handling marks consistent with careful bench use; no corrosion, no impact damage, and no distortion to the frame. The thimble and sleeve operate smoothly with good feel throughout the range, the ratchet stop functions correctly, and the digit counter rolls cleanly without sticking. The lock nut engages positively. As with any used precision instrument, verification against a 25mm setting standard (ring gauge or certified gauge block stack) before putting it into production is standard workshop practice — not a flag on this particular tool, just sound metrology habit.

Included:

1 x Mitutoyo 193-112 Outside Micrometer, 25–50mm, 0.001mm, Digit Counter
1 x Original Mitutoyo fitted case
1 x 25mm setting standard / reference gauge
1 x Original paperwork / warranty documentation (Japanese language)
Original accessories as supplied by Mitutoyo

Not included: No additional setting standards or calibration certificates beyond original kit contents.

Brand Information

Mitutoyo Corporation, founded in Japan in 1934, is the world’s largest manufacturer of precision measuring instruments and the benchmark brand against which all other metrology tooling is measured — literally and figuratively. Their micrometers, vernier callipers, and dial indicators are standard issue in aerospace, automotive, and precision engineering facilities globally, sitting in the same tier as Mahr and Tesa for quality and well above import-grade tooling. Made in Japan, calibrated to DIN/JIS standards, and backed by a global service and recalibration network — Mitutoyo is a name that needs no qualification on an Australian shop floor.

Specifications

Feature	Specification
Brand	Mitutoyo
Model	193-112
Type	Outside Micrometer with Mechanical Digit Counter
Series	193 (Digit Micrometer Series)
Measuring Range	25–50mm
Graduation / Resolution	0.001mm (1 micron)
Accuracy	±0.002mm (per Mitutoyo specification)
Display Type	Mechanical rolling digit counter
Anvil / Spindle Faces	Carbide-tipped, hardened and lapped
Frame Material	Cast iron frame with heat-insulating thimble grip
Lock Nut	Yes
Ratchet Stop	Yes
Country of Origin	Japan
Condition	Used (Like New)
Included Items	Fitted case, 25mm setting standard, original paperwork and accessories
Not Included	No third-party calibration certificate

Keywords

Mitutoyo 193-112, Mitutoyo digit micrometer, outside micrometer 25-50mm, Mitutoyo outside micrometer, mechanical counter micrometer, toolroom micrometer Australia, precision micrometer 0.001mm, bore mic outside measurement, machinist micrometer used, Japanese micrometer, metrology tool Australia, shaft diameter measurement

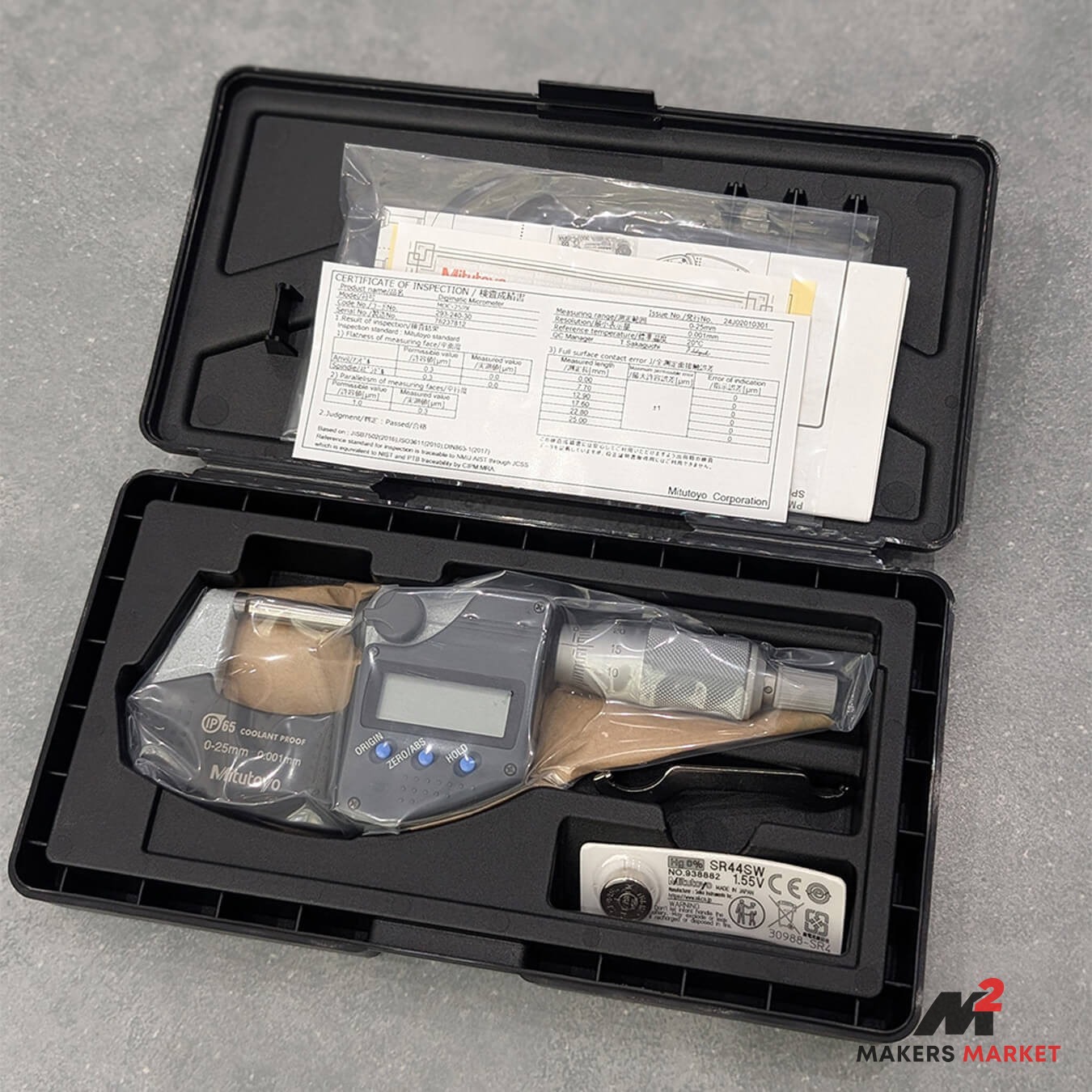

Mitutoyo 0-25mm Digital Micrometer 293-240-30

Product Overview

The Mitutoyo 293-240-30 is a 0–25mm digital outside micrometer from the QuantuMike series — one of Mitutoyo’s most refined bench micrometers for precision work where speed and accuracy need to coexist. With a fast-feed thimble mechanism, IP65 coolant-proof rating, and a 0.001mm resolution digital readout, this is a toolroom-grade instrument that earns its place next to your surface plate or beside the spindle of a CNC lathe. Whether you’re checking turned diameters to the thou, qualifying stock before a grinding pass, or doing first-off inspection on a batch of precision shafts, the 293-240-30 delivers repeatable, traceable readings without the ambiguity of a vernier line.

0.001mm resolution digital readout with IP65 protection — The LCD display eliminates parallax error and interpolation guesswork that comes with analogue thimbles. IP65 coolant-proof sealing means you can use this instrument at the machine in a flood-coolant environment without babying it — a meaningful real-world advantage over standard digital micrometers that fail quickly in wet shop conditions.
Fast-feed thimble mechanism (QuantuMike) — The QuantuMike’s rapid advance mechanism lets you spin the thimble down to the work much faster than a conventional micrometer without sacrificing feel at the measuring face. On production work or repeat checking of multiple parts, this cuts cycle time at the gauge station and reduces operator fatigue over a long shift.
Hardened and ground carbide-tipped anvil and spindle faces — Both measuring faces are carbide-tipped and lapped flat, giving the instrument long service life under daily use. The ground reference surfaces are what underpin repeatable, accurate measurements — this is not a cost-reduced instrument with painted or plated faces.
SR44SW battery included; Origin/Zero/Hold functions — The ORIGIN function allows the micrometer to be zeroed at any point in the range, useful when checking wall thickness or step dimensions. The HOLD function freezes the display — handy when measuring in restricted access or at awkward angles where you can’t see the display at the point of measurement.
Ideal for — first-off and in-process inspection of turned and ground components, qualifying bar stock and ground shafting before setup, checking micrometer-critical fits (bearing journals, gear bores, bushings), QC inspection on CNC lathe and mill work, and toolroom gauge-bench duties where a calibration certificate is required for traceability.

Condition

New (Factory Sealed)

This micrometer is brand new and factory sealed in the original Mitutoyo packaging. The measuring faces, thimble, sleeve, and frame are in pristine, unissued condition — no contact marks on the anvil or spindle, no wear on the thimble knurl, and no handling patina on the frame. The instrument has not been used, set up, or zeroed prior to this sale. A Mitutoyo Certificate of Inspection is included confirming the unit has passed factory calibration and is traceable to national measurement standards (NIST/JCSS). As with any precision instrument — new or used — it is good shop practice to verify zero against a known reference (a calibrated 25mm gauge block or setting standard) before putting it to work, particularly if the unit has been in transit. The certificate documents factory-measured errors at multiple points across the range, so you have a documented baseline from the outset.

Included:

1 x Mitutoyo QuantuMike Digital Outside Micrometer, 0–25mm, 0.001mm resolution (Model 293-240-30)
1 x Original Mitutoyo fitted carry case
1 x Certificate of Inspection / factory calibration documentation
1 x SR44SW battery (installed)
1 x Spanner wrench / standard accessories as supplied by Mitutoyo
1 x Instruction manual / documentation pack

Not included: No setting standard or gauge block — if traceable zero verification is required for your QMS, a 25mm gauge block or setting rod should be sourced separately.

Brand Information

Mitutoyo Corporation is Japan’s largest manufacturer of precision measuring instruments and is widely regarded as the global benchmark in metrology tooling — sitting at the top of the market alongside Mahr, Tesa, and Starrett for instrument quality, calibration traceability, and long-term parts and service support. Founded in 1934 and headquartered in Kawasaki, Japan, Mitutoyo manufactures the full spectrum of dimensional metrology equipment from vernier callipers to CMMs, and their instruments are the de facto standard on toolroom benches, aerospace inspection floors, and precision manufacturing cells worldwide. For Australian machinists and quality engineers, Mitutoyo instruments carry strong resale value, readily available calibration support through local agents, and a reputation for holding specification across decades of working life.

Specifications

Feature	Specification
Brand	Mitutoyo
Model	293-240-30
Series	QuantuMike (Series 293)
Type	Digital Outside Micrometer
Measuring Range	0–25mm
Resolution	0.001mm
Accuracy	±0.001mm
Repeatability	0.001mm
IP Rating	IP65 (coolant proof)
Display	LCD digital readout
Functions	ORIGIN, ZERO/ABS, HOLD
Measuring Faces	Carbide-tipped, lapped flat
Frame Material	Heat-insulated frame (minimises thermal transfer from hand)
Battery	SR44SW, 1.55V (included)
Country of Origin	Japan
Condition	New (Factory Sealed)
Included Items	Micrometer, fitted case, Certificate of Inspection, SR44SW battery, spanner wrench, manual/documentation
Not Included	25mm gauge block / setting standard

Keywords

Mitutoyo 293-240-30, Mitutoyo QuantuMike digital micrometer, Mitutoyo outside micrometer 0-25mm, digital micrometer 0-25mm, IP65 digital micrometer, outside micrometer 0.001mm resolution, coolant proof micrometer, toolroom micrometer Australia, precision micrometer machinist, digital outside mic, micrometer with calibration certificate, CNC inspection micrometer

Mitutoyo 2 Micron Indicator 513-475-10 Ruby Tipped

Product Overview

Sometimes, a standard 0.01mm indicator isn’t precise enough, but an ultra-sensitive 1-micron indicator is too twitchy for your specific setup. The Mitutoyo 513-475-10 Horizontal Dial Test Indicator hits the absolute sweet spot. Offering a highly precise 2 Micron (0.002mm) resolution and a durable ruby tip, it provides incredible accuracy while remaining highly readable and stable during demanding metrology tasks.

The 2-Micron Sweet Spot: Featuring a strict graduation of 0.002mm and a total measuring range of 0.2mm (0-100-0 dial reading), this instrument is the perfect middle ground for indicating aerospace parts, tramming fixtures, and checking high-precision runout without the needle jumping erratically from ambient machine vibration.
Ruby Contact Point: The stylus is tipped with a premium ruby ball. Ruby offers exceptional wear resistance against hardened tool steels and abrasive materials. Furthermore, it is completely non-magnetic, making this the ultimate indicator for use on magnetic surface grinder chucks or around high-powered EDM setups where a standard steel tip would stick and drag.
Jeweled Movement: Equipped with Mitutoyo’s legendary jeweled bearing mechanisms inside the housing, it provides buttery-smooth, highly responsive motion with zero clutch backlash and extremely low measuring force.
Shop-Floor Durability: The O-ring sealed bezel and hard-coated, glare-free crystal actively prevent the ingress of shop dust and aggressive cutting fluids, ensuring the dial face remains crystal clear over a lifetime of use.

Condition

Brand New (Wrapped & Factory Sealed).

This is a brand-new, completely unused, and highly precise Japanese metrology instrument.

Complete Kit: It is pristine and ready to be unboxed. It comes complete with its fitted factory storage case, official inspection certificate, and the standard Ø8 mm metric mounting stem, allowing you to instantly mount it to your favorite articulating magnetic base.

Brand Information

Mitutoyo Corporation (Japan) is the undisputed global benchmark for dimensional metrology. Their 513-Series dial test indicators (DTIs) are universally recognized as the absolute standard in the precision machining industry, relied upon by master toolmakers for their highly responsive internal gearing, robust environmental sealing, and unwavering long-term repeatability.

Specifications

Feature	Specification
Brand	Mitutoyo (Japan)
Model	513-475-10 (Horizontal Type)
Type	Dial Test Indicator (DTI)
Graduation / Resolution	0.002mm (2 Micron)
Measuring Range	0.2mm (0-100-0 Dial Reading)
Contact Point	Ruby Tipped (Non-Magnetic)
Stem Mounting	8mm Standard Stem
Condition	Brand New / Factory Wrapped

Keywords

Mitutoyo 513-475-10, Mitutoyo 2 micron indicator, ruby tipped indicator, 0.002mm dial test indicator, Mitutoyo DTI, non magnetic test indicator, machinist dial indicator, Japanese metrology, precision runout gauge.

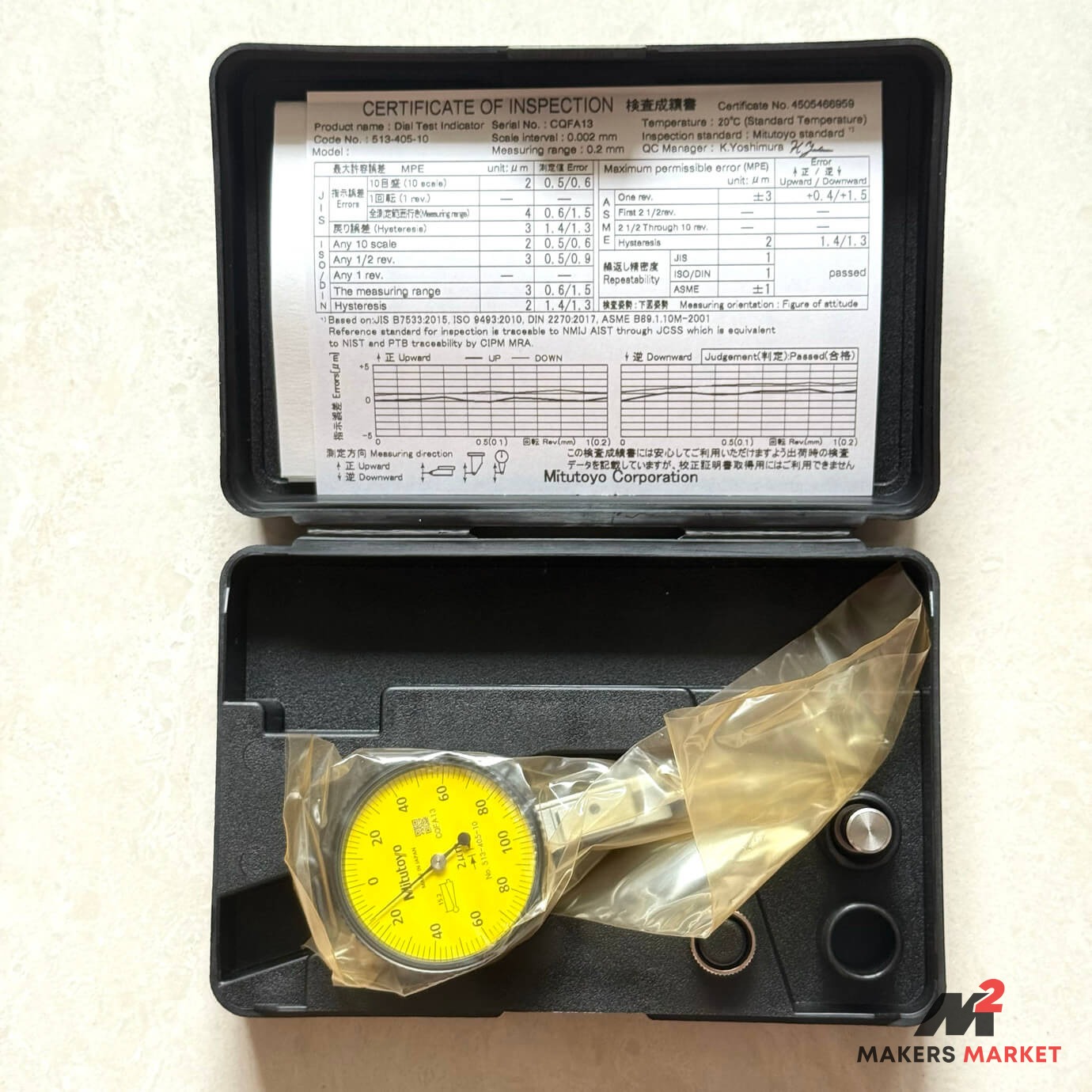

Mitutoyo 2µm Test Indicator 513-405-10E

Product Overview

The Mitutoyo 513-405-10E is a lever-type dial test indicator built to the exacting standards that have made Mitutoyo the benchmark name in toolroom metrology. With a 2µm graduation and a compact dovetail-mount body, this indicator is engineered for the kind of close-tolerance work where a 5µm indicator simply won’t cut it — think surface grinder setup, precision boring, or holding a four-jaw to within a tenth. Fresh from the factory with its calibration certificate intact, this is a ready-to-use instrument that goes straight onto the bench with full traceability.

2µm (0.002mm) graduation over a 0.2mm measuring range — The fine graduation isn’t just a spec-sheet number. When you’re sweeping a ground bore or tramming a precision vice, each needle division represents two microns of deviation. That resolution lets you split the difference between graduations with confidence, delivering the kind of discrimination you need when tolerances are tight and scrap is expensive.
JIS B7533 / ISO 9493 / ASME B89.1.10M compliant accuracy — The included calibration certificate documents measured errors against the permissible limits under all three major international standards. For work going into aerospace, defence, or any regulated environment, that traceability back through NMIJ/AIST via JCSS to NIST and PTB is not optional — it’s the difference between a piece of paper you can hand to a customer and an educated guess.
Dovetail body with adjustable contact point — The universal dovetail mounting is compatible with the full range of Mitutoyo indicator holders, magnetic bases, and surface gauge posts. The articulating contact arm allows the stylus angle to be set without disturbing the mount, which matters when you’re reaching into a pocket or sweeping a bore from a fixed arm position.
Yellow dial face with ruby contact point — The high-contrast yellow dial with black graduations is easy to read under typical workshop lighting without squinting. The ruby contact tip resists wear on hardened surfaces far better than carbide or steel alternatives, keeping your contact geometry consistent over thousands of measurement cycles.
Ideal for precision surface grinder work-holding setup, four-jaw chuck centring, boring bar runout checks, tramming mill heads and vices, CMM fixturing verification, and incoming inspection of ground or turned components.

Condition

New (Factory Sealed)

This indicator is new and factory sealed — it has not been used, mounted, or touched by anyone between Mitutoyo’s production line and this listing. The instrument arrives with its original Mitutoyo plastic case, full accessory complement, documentation, and — critically — the original calibration certificate issued at 20°C standard temperature with a certificate number (4505466959) and QC manager sign-off. The certificate charts measured errors for upward and downward travel across the full measuring range, confirming the unit passed all JIS, ISO/DIN, and ASME repeatability requirements. There is nothing to disclose in terms of wear, surface marks, or mechanical issues — the tool is exactly as Mitutoyo shipped it. For the highest-confidence work, we still recommend zeroing against a known reference after any storage period or temperature change, as is standard practice with any precision instrument regardless of its newness.

Included:

1 x Mitutoyo Dial Test Indicator, Model 513-405-10E, 0.002mm graduation, 0.2mm range
Original Mitutoyo plastic carry case
Calibration certificate (Certificate No. 4505466959)
Original Mitutoyo accessories (contact points / spanner as supplied)
Original documentation / instruction sheet

Not included: Magnetic base, indicator holder, or surface gauge post (sold separately).

Brand Information

Mitutoyo Corporation, founded in Japan in 1934, is the world’s largest manufacturer of precision measuring instruments and the brand against which all other metrology tooling is benchmarked — occupying the same tier as Tesa, Mahr, and Starrett at the top of the global market. Their instruments are produced under rigorous JIS and ISO quality systems at facilities in Japan, with calibration traceability maintained through NMIJ/AIST and JCSS, equivalent to NIST and PTB — which is why Mitutoyo is specified by name in aerospace, automotive, and defence supply chains worldwide. In Australian toolrooms, a Mitutoyo indicator on the bench is a signal that the operator takes their measurement seriously.

Specifications

Feature	Specification
Brand	Mitutoyo
Model	513-405-10E
Series	513 — Dial Test Indicator (Lever Type)
Type	Lever-type dial test indicator (DTI)
Measuring Range	0.2mm
Graduation / Resolution	0.002mm (2µm)
Scale Interval	0.002mm
Maximum Permissible Error (MPE) — Any 10 scale	±2µm
Maximum Permissible Error (MPE) — Measuring range	±3µm
Hysteresis	1.4µm / 1.3µm (upward / downward)
Repeatability (JIS)	1µm
Repeatability (ISO/DIN)	1µm
Repeatability (ASME)	±1µm
Compliance Standards	JIS B7533:2015, ISO 9493:2010, DIN 2270:2017, ASME B89.1.10M-2001
Dial Face Colour	Yellow
Contact Point Material	Ruby
Mount / Body	Dovetail (universal Mitutoyo-compatible)
Calibration Reference Temperature	20°C (Standard Temperature)
Calibration Traceability	NMIJ/AIST via JCSS (equivalent to NIST and PTB)
Country of Origin	Japan
Condition	New (Factory Sealed)
Included Items	Indicator, original case, calibration certificate, original accessories, documentation
Not Included	Magnetic base, indicator holder, surface gauge post

Keywords

Mitutoyo 513-405-10E, Mitutoyo dial test indicator, Mitutoyo lever indicator 2 micron, dial test indicator 0.2mm range, DTI 0.002mm graduation, test indicator Japan, toolroom dial indicator, precision lever gauge, tramming indicator, surface grinder setup indicator, four-jaw chuck indicator, Mitutoyo 513 series

Mitutoyo Micrometer Stand 156-101-10

Condition

New.

This micrometer stand is a brand-new, unused item. It is supplied in its original manufacturer packaging, with the stand itself still wrapped for protection. It is 100% complete and ready for immediate use on the inspection bench.

Product Overview

The Mitutoyo 156-101-10 is an essential workshop accessory designed to free up the operator’s hands for precise measurement. By clamping the micrometer frame in this dedicated stand, you can hold the workpiece with one hand and operate the thimble with the other, ensuring perfect alignment and consistent measuring force.

This specific model is the Adjustable Angle Type, allowing the micrometer to be tilted to the optimal viewing position for the operator. It features a heavy, cast-iron base for stability, preventing the setup from tipping over during use. The clamping jaws are lined with rubber/synthetic pads to securely grip the micrometer frame without scratching the hammertone finish or crushing the thermal insulation plates. It is designed to accommodate standard outside micrometers with ranges up to 100mm (4″).+1

Brand Information

Mitutoyo Corporation (est. 1934) is the global authority in dimensional metrology. While often overlooked, a high-quality stand is critical for achieving the rated accuracy of their micrometers. By isolating the tool from the operator’s body heat (which causes thermal expansion in the frame), the 156-Series stands ensure that measurements remain stable even during long inspection sessions.+1

Specifications

Feature	Specification
Model	156-101-10
Type	Adjustable Angle (Vertical/Tilt)
Capacity	Micrometers up to 100mm (0-4″)
Clamp Type	Screw Clamp with Protective Pads
Material	Cast Iron Base
Finish	Hammertone Enamel
Included	Stand, Original Box

Keywords

Mitutoyo, 156-101-10, micrometer stand, mic holder, inspection stand, adjustable stand, third hand tool, machinist tools, precision measurement, metrology accessories.

Nakane Slender Chuck 3-4-6mm

Product Overview

The Nakane Slender Chuck is a purpose-built end mill holding system designed for CNC machining centres and manual mills where a standard chuck body would foul the workpiece or fixture. The slim-profile holder keeps the collet nose close to the spindle centreline and well clear of surrounding clamps, allowing deep-pocket and tight-clearance work that a conventional ER collet chuck simply can’t reach without extending the tool to a dangerous overhang. This set covers the three most common small end mill shank diameters in a single kit — a practical shelf item for any toolroom running die work, mould cavities, or detailed profiling.

Slender body geometry — the reduced-diameter holder body dramatically improves clearance in confined pockets and around workholding hardware, letting you run shorter tool stickout and recover rigidity that would otherwise be lost to extension.
Three-collet coverage (ø3.0, ø4.0, ø6.0 mm) — spans the small-diameter end mill range most commonly used in die-sinking and detailed profiling work; swapping collets takes seconds and the sizing covers the majority of jobs without reaching for a second holder.
Precision ground collet bore — a well-manufactured slender chuck collet grips on the full shank diameter with even clamping pressure, keeping runout tight and protecting the end mill cutting edges from the fretting that a loose or worn collet causes under interrupted cuts.
Compact elongated holder shank — the long, slim shank visible in the box is ground to a standard arbour diameter, allowing the holder to seat concentrically in a standard spindle taper or toolholder without introducing additional runout at the collet nose.
Ideal for — deep-pocket CNC milling, mould and die cavity work, profiling around vise jaws and clamps, running small carbide end mills in a manual knee mill where clearance is tight, and anywhere a standard shell mill arbour or ER block body would contact the fixture.

Condition

Used (Good Condition / Original Box, 3mm Collet Pitting Noted)

The holder body and elongated shank present well — ground surfaces show normal bench patina consistent with careful use, with no visible damage to the shank diameter or collet seat that would introduce gross runout. The ø4.0 mm and ø6.0 mm collets are in serviceable condition; their bores and external tapers appear clean and free of the kind of corrosion or scoring that would compromise grip or concentricity. The ø3.0 mm collet is the one component that warrants a straight conversation: it has sustained surface rust that has been cleaned back, but the cleaning has left visible pitting on the external taper face. Pitting on the collet OD taper is a functional concern — if the pitted surface doesn’t seat evenly against the chuck bore, it can introduce runout at the tool tip that a sound collet would not. For non-critical profiling, slotting, or roughing in 3 mm, the collet may perform adequately, but for finish work or anywhere you’re holding tight tolerances on a 3 mm shank tool, we recommend checking runout against a known ground test bar or replacing the 3 mm collet before committing it to precision work. The 4 mm and 6 mm collets carry no such reservation and should go straight to work. Original box and foam tray are included and the packaging has done its job — the holder has been protected.

Included:

1 x Nakane Slender Chuck Holder (elongated slim-body shank)
1 x ø3.0 mm Collet (pitting on external taper — see condition notes)
1 x ø4.0 mm Collet
1 x ø6.0 mm Collet
1 x Original Nakane box and foam tray

Not included: Spanner / tightening wrench (if required for the collet nut — source separately to suit your holder configuration), replacement 3 mm collet.

Brand Information

Nakane is a Japanese precision tooling manufacturer with a solid reputation in the toolroom and die-making sectors, producing collet chucks, holders, and related workholding accessories to the exacting tolerances expected of Japanese industrial tooling. Japanese tooling of this type sits comfortably alongside brands such as NT Tool, Nikken, and Big Kaiser in terms of manufacturing quality — ground to consistent tolerances, with material selection and heat treatment appropriate to a precision spindle component. While Nakane doesn’t carry the same global marketing presence as the largest Japanese tooling houses, the build quality evident in this style of product reflects the standards Japan’s machine tool industry is known for, and sourcing Nakane tooling second-hand remains a cost-effective path to quality Japanese precision over generic import alternatives.

Specifications

Feature	Specification
Brand	Nakane
Product Name	Slender Chuck (スレンダーチャック)
Type	Slender / Slim-Body End Mill Collet Chuck Set
Application	End mill holding (エンドミル用)
Collet Capacities Included	ø3.0 mm, ø4.0 mm, ø6.0 mm
Holder Body Style	Elongated slim-profile shank (slender body)
Material / Construction	Ground alloy steel (holder and collets)
Country of Origin	Japan
Condition	Used — Good overall; ø3.0 mm collet has cleaned rust with residual external taper pitting (see condition notes)
Included Items	Holder body, ø3.0 mm collet, ø4.0 mm collet, ø6.0 mm collet, original box and foam tray
Not Included	Tightening wrench, replacement collets

Keywords

Nakane Slender Chuck, Nakane end mill holder, slender chuck collet set, slim body end mill chuck, 3mm 4mm 6mm collet chuck, Japanese tooling collet holder, CNC end mill holder Australia, die sinking toolholder, mould machining collet chuck, deep pocket end mill holder, toolroom collet chuck Japan, slender chuck machining centre

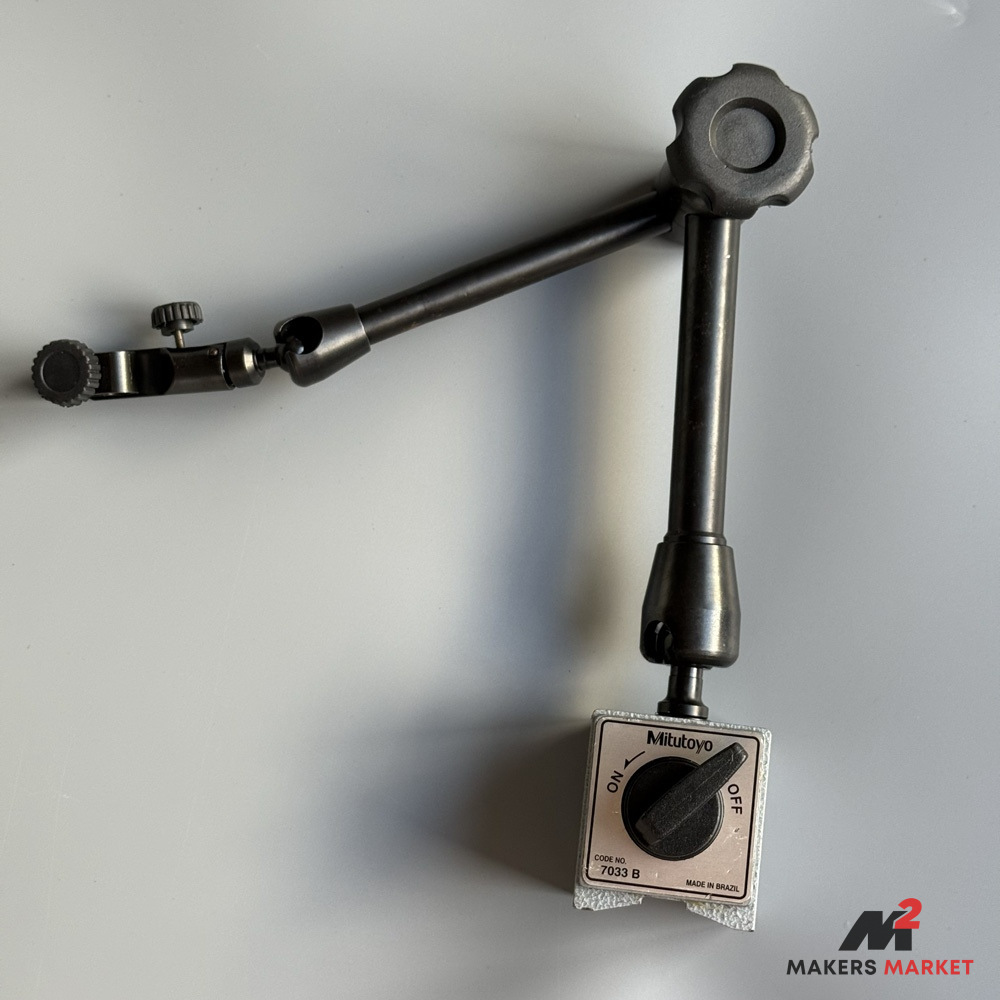

Mitutoyo 7033B Universal Magnetic Stand
Condition: This Mitutoyo 7033B magnetic indicator stand is used and in excellent condition. The magnet and all adjustment joints work as intended, providing stable positioning for indicator use.

The 7033B is a versatile magnetic stand from Mitutoyo’s Series 7 range. It features a powerful switchable magnetic base with approximately 587 N of holding force and a V-groove for mounting on both flat and cylindrical surfaces. The articulated arm can be locked securely in position with a single control, allowing flexible setup and repeatable accuracy. It accepts 8 mm and 3/8 in indicator stems, covering most common dial and test indicators used in machining and inspection tasks.

Mitutoyo’s magnetic stands are valued for their rigidity and precision, making them an essential accessory in machine shops and metrology labs. The 7033B combines strength, adaptability, and compact design to meet the daily demands of toolmakers and inspectors.

Features & Technical Specifications
- Condition: Used, excellent working order
- Model: 7033B
- Magnetic Holding Force: ~587 N (132 lbf)
- Base Type: Switchable magnetic base with V-groove
- Overall Height: ~430 mm
- Arm System: Articulated, single-knob locking
- Stem Compatibility: 8 mm and 3/8 in
- Adjustment: Full arm articulation with secure locking
Applications
- Secure mounting for dial and test indicators
- Flexible positioning for inspection and alignment tasks
- Ideal for machinists, toolmakers, and metrology labs
- Provides stable support in quality control and workshop setups

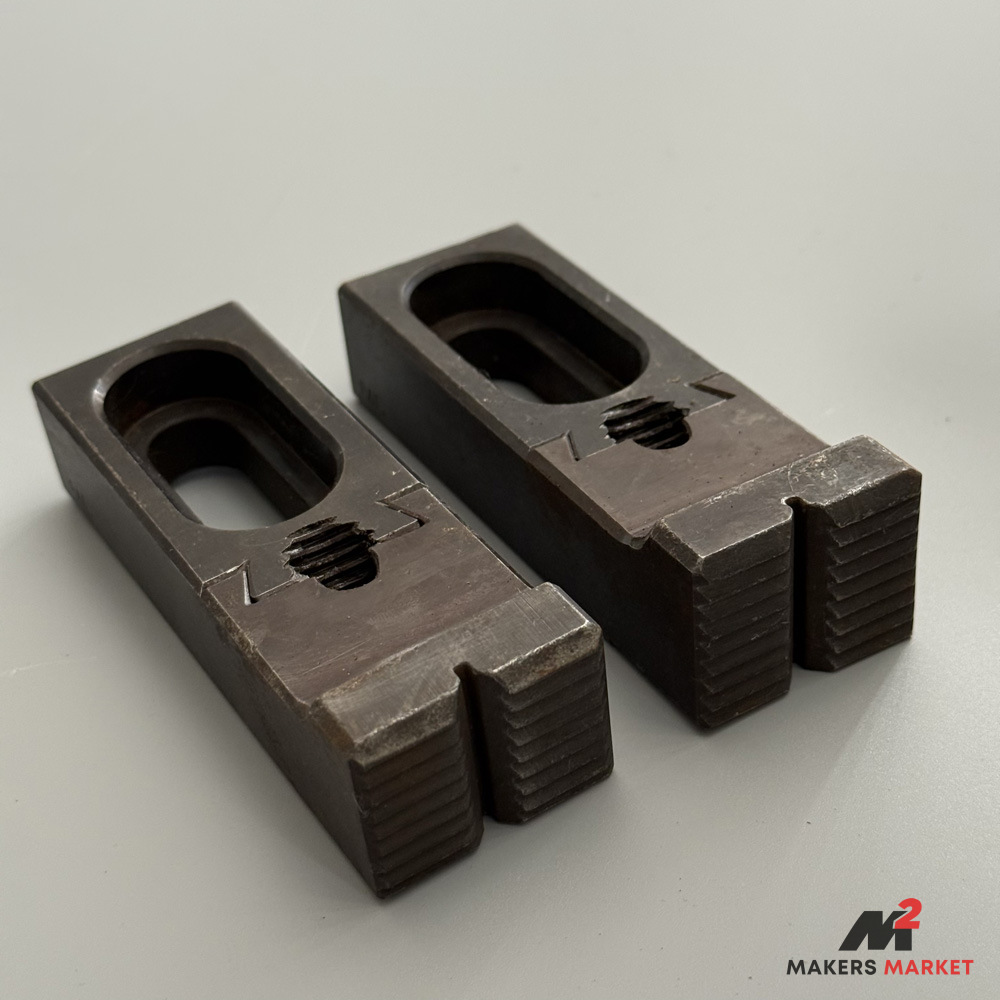

New Strong Tools Toe Clamps TC-1B

Product Overview

Strong Tools TC-1B Toe Clamps are a purpose-built workholding solution for milling machine tables, designed to grip workpieces low and laterally — ideal when conventional strap clamps would foul the cutter path or where vertical clamping isn’t practical. The serrated toe face bites into the workpiece side, and the stepped base locates cleanly in a standard T-slot, giving you a compact, repeatable hold without stacking up a tower of strap-and-bolt hardware. These are sold as a matched pair of two clamps.

Serrated jaw face for positive lateral grip — The knurled/serrated toe face digs into the workpiece side wall, resisting both lateral pull and rotational shift under cutting loads. On interrupted cuts or heavy side-milling passes, this is the difference between a secure setup and a shifted job.
Stepped T-slot base design — The stepped foot profiles on each clamp are machined to engage standard T-slots, locking the clamp body against rotation and rocking. This means the clamping force goes where it’s supposed to — into the workpiece — not wasted fighting clamp movement.
Compact 105mm × 35mm footprint — At 105mm long and 35mm wide, these clamps sit tight to the workpiece with minimal table real estate consumed. On a crowded table with multiple ops or a second vice in use, that footprint matters when you’re trying to keep the cutter clear.
27mm jaw face height — The 27mm vertical gripping face gives adequate bite on low-profile workpieces such as plate sections, flanges, and sheet goods that conventional strap clamps struggle to reach down to cleanly.
Ideal for — Side-clamping plate and billet work on a knee mill or machining centre, holding irregularly shaped castings that won’t strap-clamp flat, fixturing thin-section parts for face milling, and any milling setup where the top surface of the workpiece must remain fully accessible to the cutter.

Condition

Used (Good Condition / Workshop Worn)

Both clamps are in honest used condition consistent with regular workshop service. The machined surfaces — including the stepped T-slot bases and the serrated toe faces — are intact and functional, with no visible deformation, cracking, or stripping to the threaded bores. The serrations on the jaw faces show normal use wear but retain sufficient tooth profile to grip a workpiece effectively. The body surfaces carry the expected patina of a shop-floor tool: minor surface oxidation, handling marks, and light scuffing to the flanks — none of which affect clamping performance. No box, paperwork, or fasteners are included; you will need appropriate T-slot bolts and nuts to suit your machine’s T-slot width before putting these to work. As with any used workholding, it is good practice to inspect the threaded bores with a thread gauge or test bolt prior to first use to confirm thread integrity.

Included

2 x Strong Tools TC-1B Toe Clamps (105mm × 35mm, 27mm jaw face height)

Not Included

T-slot bolts, nuts, or washers
Original box or paperwork

Brand Information

Strong Tools is a Taiwanese industrial tooling brand with a solid reputation in the workholding and machine tool accessory segment, producing a broad range of clamping systems, vices, and fixturing components for manual and CNC milling applications. Taiwanese tooling of this type generally sits in the practical mid-market tier — a step above generic import hardware in terms of dimensional consistency and material hardness, and a realistic working alternative to premium Japanese or German workholding for production and toolroom use. Strong Tools products are well regarded among Australian machinists as dependable, no-nonsense workholding that does the job without the premium price tag of brands like Mitee-Bite or Chick.

Specifications

Feature	Specification
Brand	Strong Tools
Model	TC-1B
Type	Toe Clamp (Lateral / Side Clamp)
Length	105mm
Width	35mm
Jaw Face Height	27mm
Base Style	Stepped T-slot locating foot
Jaw Face	Serrated / knurled gripping face
Material / Construction	Hardened steel (tool steel body)
Application	Milling machine table workholding
Country of Origin	Taiwan
Condition	Used (Good Condition / Workshop Worn)
Quantity	2 x clamps (pair)
Included	2 x TC-1B Toe Clamps only
Not Included	T-slot bolts, nuts, washers, box, paperwork

Keywords

Strong Tools TC-1B, Strong Tools toe clamps, toe clamps milling machine, T-slot toe clamps, mill table workholding, side clamps CNC, milling clamps Australia, workholding fixtures toolroom, lateral clamps billet, machining centre clamps, milling vice clamps, fixturing plate work mill

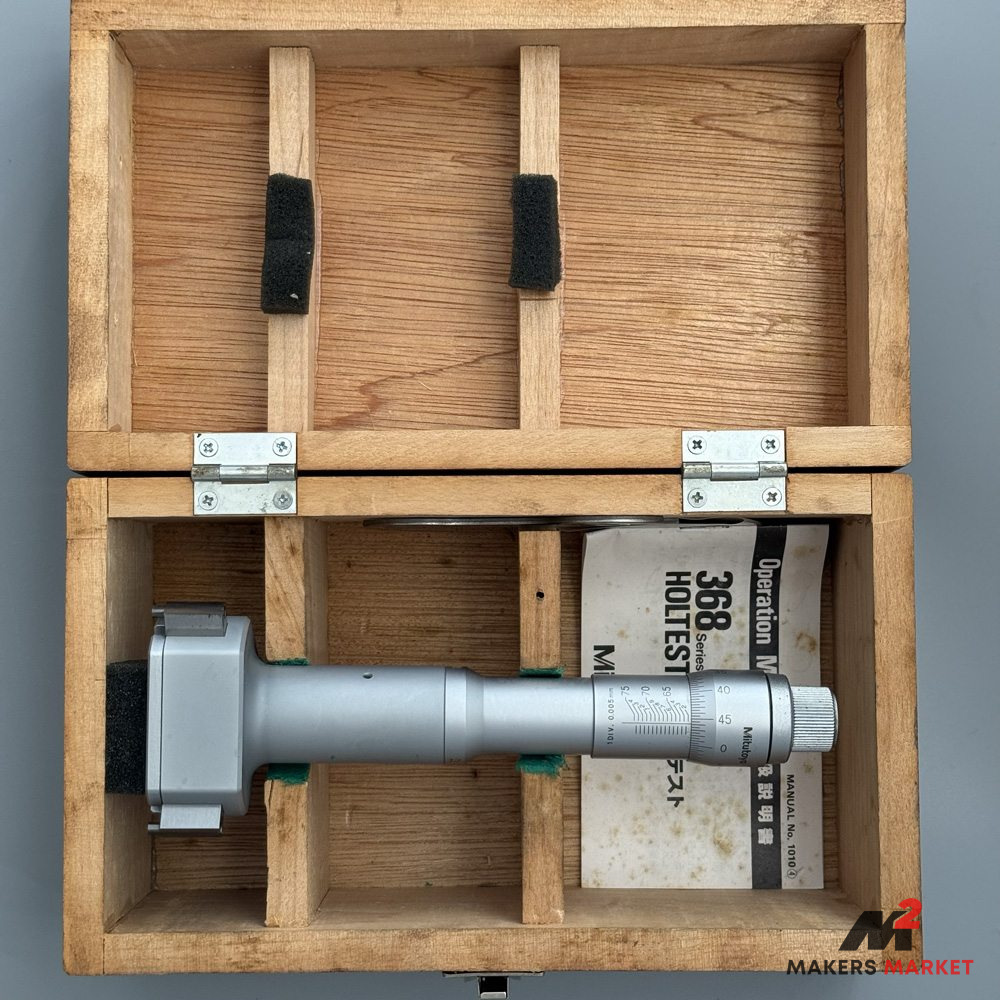

Mitutoyo 62-75mm Holtest 368-141

Product Overview

The Mitutoyo 368-141 Holtest is a three-point internal micrometer covering the 62–75mm bore range — a workhorse instrument for any toolroom or production floor where accurate bore measurement is non-negotiable. Unlike a two-point bore gauge that relies on a separate dial indicator and master setting, the Holtest reads directly off a calibrated thimble and barrel, giving you a true micrometric reading in one instrument. The three-point contact system self-centres in the bore, eliminating the rocking error that plagues two-jaw internal mics and delivering repeatable readings without operator technique being a variable.

Three-point self-centring contact system — Three tungsten carbide-tipped anvils spread 120° apart locate the instrument on the true centreline of the bore automatically. This removes the need to rock and find the minimum reading as you would with a two-point mic, which means faster measurement cycles and results that don’t vary between operators on the shop floor.
Direct micrometric readout to 0.005mm graduation — Reading directly off the thimble and barrel means no secondary dial indicator to zero, no transfer error from a separate gauge head, and a direct dimensional value you can record or call out without mental arithmetic. For bore tolerances in the H7/H8 range this resolution is more than adequate.
Hardened and ground measuring faces — The carbide contact points resist wear during repeated insertion into bored bores, ground bores, and reamed holes. On a production run of cylinder liners, hydraulic bodies, or bearing housings, this matters far more than it does on a single-off job — the accuracy doesn’t drift mid-run.
Newer-style 368 Series body — The 368 Series uses Mitutoyo’s updated barrel and thimble design with a friction thimble (ratchet stop) for consistent measuring force, keeping readings repeatable regardless of how hard the operator winds in. Setting ring required for zeroing; available separately (see seller note below).
Ideal for — Checking finished bore diameter on turned components on the lathe or machining centre, verifying reamed holes against H7 tolerance, measuring cylinder bores, bearing housing fits, hydraulic valve bodies, and any bored feature in the 62–75mm range where a plug gauge gives pass/fail but you need the actual number.

Condition

(Used — Like New / Well Cared For, Minimal Use)

This Holtest presents in exceptional used condition — about as close to new old stock as a used precision instrument gets. The barrel markings and thimble graduations are crisp and fully legible with no rubbing or wear to the engraving. The carbide measuring faces show no visible pitting, chipping, or flat-spotting under inspection, and the thimble turns smoothly with consistent friction-stop engagement throughout the range — no sticking, grinding, or backlash beyond normal micrometric play. The instrument body carries only the lightest bench patina consistent with careful storage and occasional use; there are no dings, dents, or impact marks to the spindle or measuring head that could indicate a drop or misuse. Functionally, the three contact points extend and retract evenly. As with any used precision instrument, zeroing against a certified setting ring before use is standard practice — a matching setting ring is available separately from the seller, which is the correct way to establish the zero reference on a Holtest regardless of whether it’s new or used. The included calibration certificate provides an additional confidence reference point.

Included:

1 x Mitutoyo Holtest 368-141 Three-Point Internal Micrometer, 62–75mm
Original Mitutoyo wooden storage case
Original operation manual / papers
Calibration certificate
Original accessories (as supplied by Mitutoyo)

Not included: Setting ring (required for zeroing — available separately from the seller; contact Makers Market to enquire about purchasing alongside this instrument).

Brand Information

Mitutoyo Corporation is a Japanese precision instrument manufacturer founded in 1934 and widely regarded as the global benchmark for hand-held metrology tooling. Their products are manufactured in Japan to exacting standards and sit at the top of the market alongside Mahr, Tesa, and Starrett — the instruments you find in NATA-accredited calibration labs and aerospace toolrooms as much as on the average CNC shop floor. When machinists specify “get a Mitutoyo” they’re not paying a brand premium for the name — they’re paying for consistent factory accuracy, long-term parts and calibration support, and instruments that hold their spec over a working lifetime.

Specifications

Feature	Specification
Brand	Mitutoyo
Model	368-141
Series	368 — Holtest Three-Point Internal Micrometer
Type	Three-point internal micrometer (self-centring)
Measuring Range	62–75mm
Graduation / Resolution	0.005mm
Accuracy	±0.003mm (refer to calibration certificate for verified value)
Measuring Force	Consistent via friction thimble / ratchet stop
Contact Points	Three-point, tungsten carbide tipped, 120° spacing
Construction	Hardened and ground steel body, carbide measuring faces
Country of Origin	Japan
Condition	Used — Like New / Well Cared For
Included Items	Instrument, original wooden case, operation manual, calibration certificate, original accessories
Not Included	Setting ring (available separately from seller)

Keywords

Mitutoyo 368-141, Mitutoyo Holtest, Mitutoyo three-point internal micrometer, bore mic 62-75mm, internal micrometer 62mm, Holtest 368 series, three point bore gauge, internal mic toolroom, precision bore measurement, bore micrometer Australia, Mitutoyo internal gauge, machining bore inspection

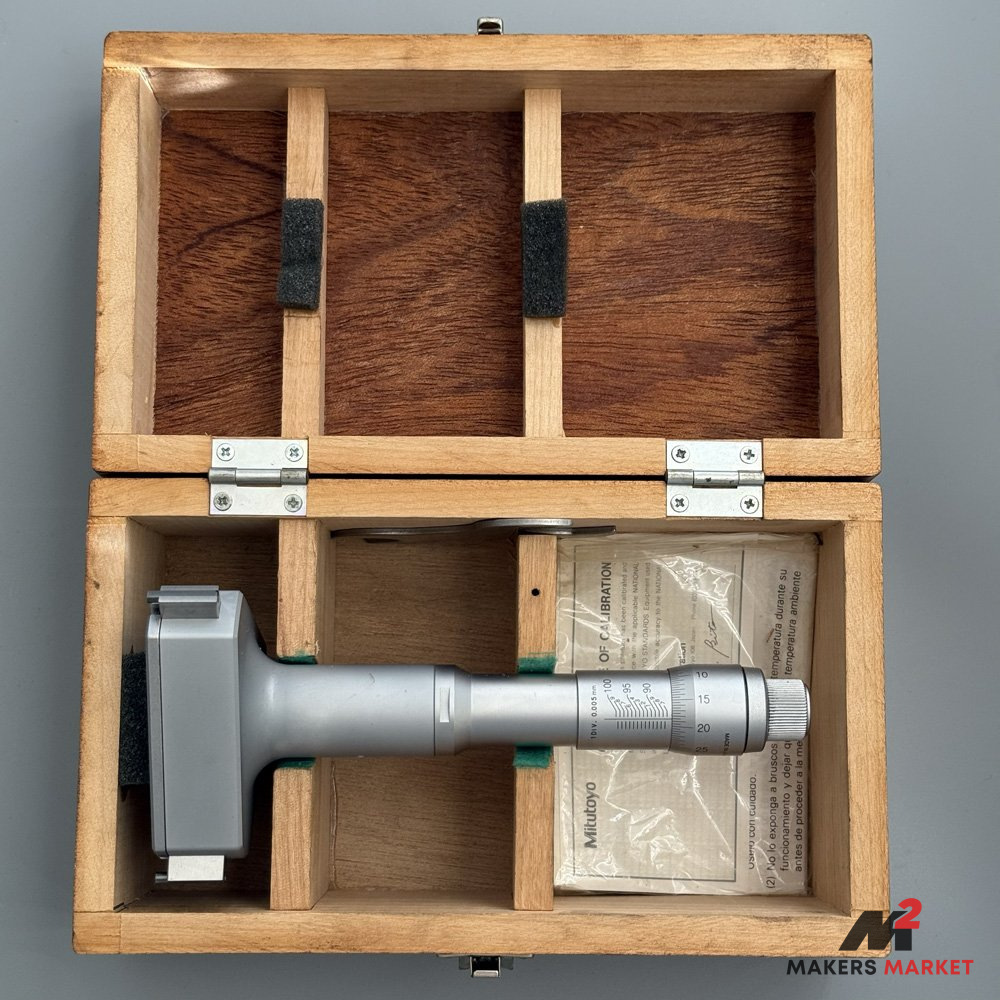

Mitutoyo 87-100mm Holtest 368-143

Product Overview

The Mitutoyo Holtest 368-143 is a three-point internal micrometer covering the 87–100mm range — a workhorse bore measuring tool built for toolrooms and production floors where a two-point bore mic or telescoping gauge simply won’t cut it. Three-point contact self-centres in the bore automatically, eliminating the rocking errors that plague two-anvil designs and giving you a repeatable reading without chasing the axis manually. This is the newer-style Mitutoyo Holtest body — cleaner ergonomics, tighter tolerances from the factory, and a thimble action that reflects the fit-and-finish you expect from Japanese metrology at this level.

Three-point self-centring contact system — Unlike a two-anvil bore mic that requires the operator to find true diameter by rocking, the three-jaw contact system centralises itself in the bore. That means your reading is the actual diameter, not an approximation, which matters when you’re checking a bearing housing to H7 tolerance or verifying a cylinder liner after honing.
0.005mm graduation (5 micron resolution) — At this resolution you’re reading in single-digit microns across the thimble and vernier, which is enough precision to verify interference fits, check bores against a ground ring standard, and catch taper across a bore depth — all without needing a dedicated bench air gauge.
87–100mm measuring range — This range covers common engineering bores: 90mm and 95mm bearing housings, large hydraulic cylinder bores, gearbox and transmission cases, and larger lathe spindle bores. A single Holtest covers 13mm of range, so you’re not swapping anvils mid-job.
Setting ring required for zeroing — A Holtest is zeroed against a calibrated ring gauge, not against itself. The seller notes a setting ring is available separately — if you don’t already have one for this range, factor that into your purchase. Without a traceable ring, you’re relying on the calibration certificate supplied, which is a reasonable starting point but not a substitute for a ground reference at your bench temperature.
Ideal for — Checking bearing housing bores to H7/H6 fit, verifying honed cylinder bores, inspecting gearbox case bores, confirming large chuck register fits, and production inspection of 87–100mm bored components on a machining centre or horizontal borer.

Condition

Used (Like New / Well Cared For)

This Holtest presents in exceptional used condition — the seller describes it as like new and well cared for, and the visual evidence backs that up. The measuring faces and carbide contacts show no visible pitting, scoring, or wear that would affect measuring accuracy. The thimble rotates smoothly with no perceptible slop or drag, and the locking mechanism functions correctly. The newer-style Mitutoyo body is clean with no corrosion, deep scratches, or impact marks to the barrel or frame. Surface finish on the spindle and contact points appears consistent with a tool that has seen careful bench use rather than production floor abuse. The calibration certificate is included, providing a documented accuracy baseline — as with any used precision tool, we recommend verifying zero against a calibrated ring gauge at your working temperature before taking it into a critical tolerance job. A setting ring for this range is available separately from the seller if required.

Included:

1 x Mitutoyo Holtest Three-Point Internal Micrometer, 87–100mm, 0.005mm graduation, Model 368-143
Original Mitutoyo wooden storage case
Original papers / instruction manual
Calibration certificate
Original accessories (as supplied by Mitutoyo)

Not included: Setting ring gauge for 87–100mm range (available separately from the seller — enquire prior to purchase).

Brand Information

Mitutoyo Corporation, founded in Japan in 1934, is the largest dedicated precision measuring instrument manufacturer in the world and the benchmark against which all other metrology brands are measured — literally and figuratively. Their Holtest series sits at the top of the three-point internal micrometer market, in the same tier as Tesa and Mahr for bore measurement, and is the de facto standard in Australian toolrooms, automotive engine reconditioning shops, and aerospace subcontract facilities. Japanese manufacture, rigorous factory calibration, and a global service and calibration network make Mitutoyo instruments a sound long-term investment rather than a consumable.

Specifications

Feature	Specification
Brand	Mitutoyo
Model	368-143
Series	Holtest — Series 368 (Three-Point Internal Micrometer)
Type	Three-point self-centring internal micrometer
Measuring Range	87–100mm
Graduation / Resolution	0.005mm (5 micron)
Accuracy	±0.003mm (per Mitutoyo specification for this series — verify against supplied calibration certificate)
Contact Points	Three-point carbide-tipped anvils
Zeroing Method	Setting ring gauge required (not included)
Country of Origin	Japan
Condition	Used — Like New / Well Cared For
Included Items	Instrument, original wooden case, papers/manual, calibration certificate, original accessories
Not Included	Setting ring gauge (available separately from seller)

Keywords

Mitutoyo 368-143, Mitutoyo Holtest, Mitutoyo three-point internal micrometer, bore mic 87-100mm, Holtest 87mm 100mm, internal micrometer Australia, three point bore gauge, bore micrometer toolroom, Mitutoyo internal bore gauge, bore mic machining centre, precision bore measurement, used Mitutoyo micrometer Australia

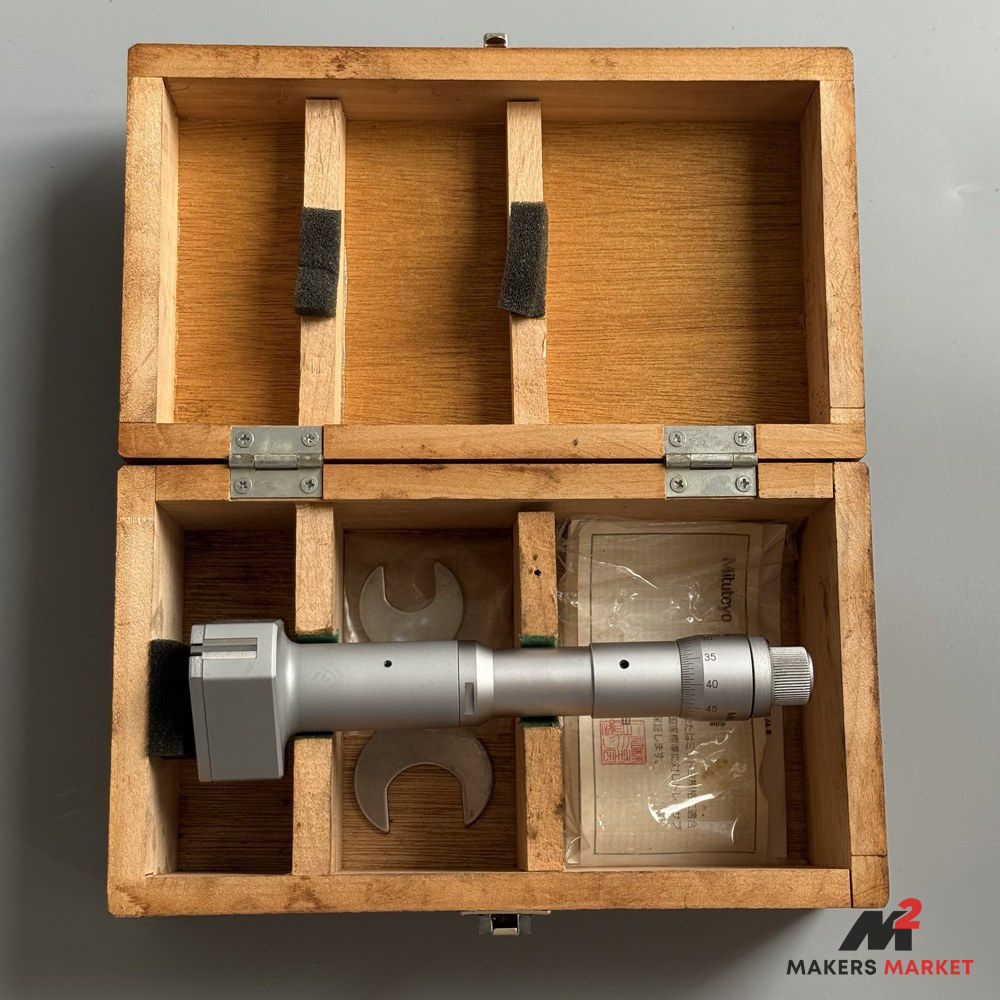

Mitutoyo 50-63mm Holtest 368-140

Product Overview

The Mitutoyo Holtest 368-140 is a three-point internal micrometer covering the 50–63mm bore range — a workhorse instrument for anyone who needs repeatable, accurate bore measurement without the setup fuss of a two-point bore gauge and setting ring. Unlike traditional two-anvil bore mics, the Holtest’s three-contact design self-centres in the bore, eliminating the rocking technique and reducing operator-induced error. If you’re checking cylinder bores, housing fits, or bushing bores to tight tolerances, this is the instrument that earns its place on the bench.

Three-point self-centring contact system — The tri-anvil head automatically aligns to the bore centreline on insertion, removing the skilled rocking motion required with a two-anvil mic. That means consistent readings between operators and far less chance of measuring a chord instead of a true diameter — critical when you’re holding a fit to a few thou.
0.005mm graduation on a direct-reading thimble — The Holtest reads directly off the sleeve and thimble without conversion or interpolation.
Hardened and ground measuring contacts — Mitutoyo’s contacts are manufactured to tight geometric tolerances and hardened for wear resistance. The spherical contact points minimise cosine error when the tool isn’t perfectly perpendicular to the bore axis — an honest safety net in production environments.
Original Mitutoyo wooden case with accessories included — Ships with the original wooden storage box, spanner wrench, and documentation. Proper storage keeps the measuring faces protected and the instrument ready for calibration checks — not rattling around a drawer.
Ideal for — checking bored housing fits for bearings and bushings, verifying cylinder liner bores, inspecting hydraulic cylinder bores, checking spindle housing bores on lathes and mills, and qualifying bored parts on a machining centre where a two-point gauge would require a master setting ring every session.

Condition

Used (Like New / Minimal Use)

This Holtest presents exceptionally well for a used instrument. The thimble rotates smoothly through its full range with no perceptible backlash or roughness, and the tri-anvil head shows no visible wear, scoring, or corrosion on the contact points — the ground reference surfaces that actually determine your measurement. The barrel and sleeve graduations are clean and fully legible. The body finish retains the vast majority of its original surface with only the lightest handling marks consistent with an instrument that’s been handled carefully and stored properly rather than left on a swarf-covered bench. There is no visible damage, pitting, or impact marking reported by the seller, and nothing visible in inspection imagery that would suggest otherwise. As with any used precision instrument — regardless of cosmetic condition — we recommend verifying zero against a certified ring gauge or a known bore standard before putting it into production work. That’s simply good metrology practice, not a reflection of any functional concern with this specific tool.

Included

1 x Mitutoyo Holtest Three-Point Internal Micrometer, 50–63mm, 0.005mm graduation (Series 368-140)
1 x Original Mitutoyo wooden storage case
1 x Spanner wrench / setting tool (as supplied originally)
1 x Original documentation / papers

Not Included

Setting ring gauge (not supplied by Mitutoyo as standard — purchase separately if calibration traceability is required)

Brand Information

Mitutoyo Corporation, founded in Japan in 1934, is widely regarded as the global benchmark in dimensional metrology — sitting at the top tier of the market alongside Mahr, Tesa, and Starrett, and a clear step above general industrial brands in terms of manufacturing consistency and long-term accuracy retention. Their instruments are manufactured to Japanese Industrial Standards (JIS) and many models carry JCSS-traceable calibration options, making them acceptable for ISO 9001 and AS/NZS quality system environments. For Australian toolrooms, Mitutoyo is the name you calibrate your other gauges against.

Specifications

Feature	Specification
Brand	Mitutoyo
Model	368-140
Type	Holtest — Three-Point Internal Micrometer
Series	368
Measuring Range	50–63mm
Graduation / Resolution	0.005mm
Accuracy	±0.003mm (refer to Mitutoyo specification sheet for full accuracy statement)
Contact System	Three-point self-centring tri-anvil head
Contact Point Material	Hardened steel (carbide-tipped on select variants — verify on instrument)
Display Type	Analogue — sleeve and thimble (vernier)
Country of Origin	Japan
Condition	Used (Like New / Minimal Use)
Included Items	Instrument, original wooden case, spanner wrench, original documentation
Not Included	Setting ring gauge

Keywords

Mitutoyo 368-140, Mitutoyo Holtest, Mitutoyo internal micrometer, three-point bore micrometer 50-63mm, bore mic 50mm, holtest bore gauge, internal micrometer toolroom, precision bore measurement Australia, bore gauge machining centre, Mitutoyo Series 368, tri-anvil internal micrometer, used Mitutoyo bore mic

Small Flat Rate Satchel

Mitutoyo 2046S Dial Gauge — 0–10mm, 0.01mm Graduation

Condition

Included

Not Included

Brand Information

Specifications

Keywords

Product Overview

Condition

Brand Information

Specifications

Keywords

Product Overview

Condition

Brand Information

Specifications

Keywords

Technical Specifications

Keywords

Product Overview

Condition

Brand Information

Specifications

Keywords

Product Overview

Condition

Brand Information

Specifications

Keywords

Product Overview

Condition

Brand Information

Specifications

Keywords

Product Overview

Condition

Brand Information

Specifications

Keywords

Condition

Product Overview

Brand Information

Specifications

Keywords

Product Overview

Condition

Brand Information

Specifications

Keywords

Features & Technical Specifications

Applications

Product Overview

Condition

Included

Not Included

Brand Information

Specifications

Keywords

Product Overview

Condition

Brand Information

Specifications

Keywords

Product Overview

Condition

Brand Information

Specifications

Keywords

Product Overview

Condition

Included

Not Included

Brand Information

Specifications

Keywords
